Hyundai Tucson: Engine Control System / Camshaft Position Sensor (CMPS) Troubleshooting

Camshaft Position Sensor (CMPS) Description and Operation

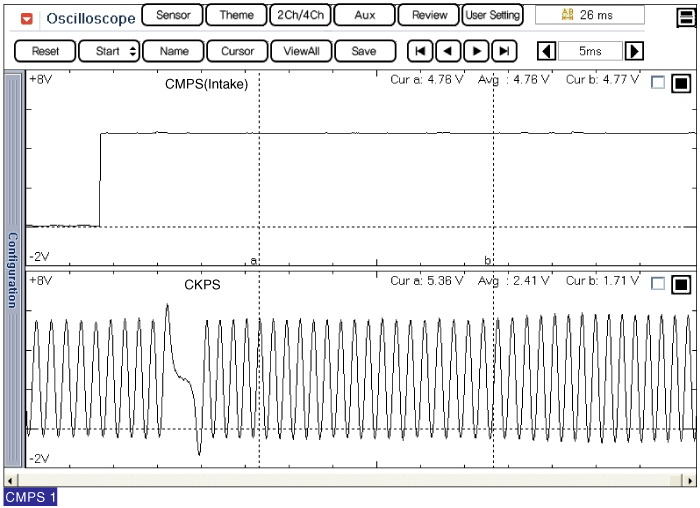

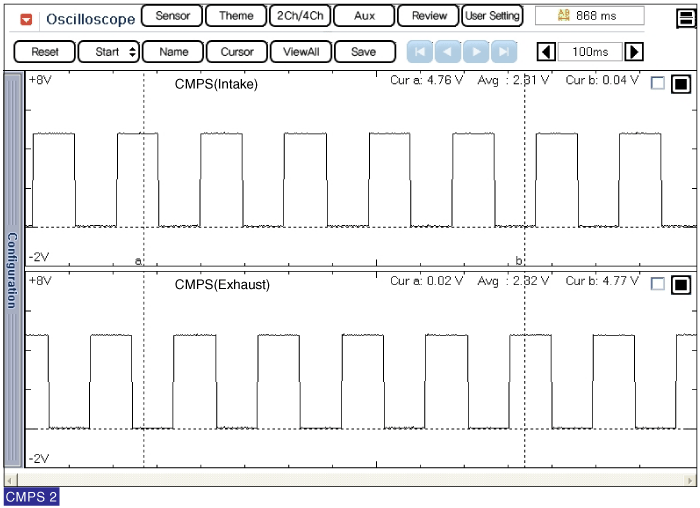

Description Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position by using a hall element. It is related with Crankshaft Position Sensor (CKPS) and detects the pisto ...

Camshaft Position Sensor (CMPS) Schematic Diagrams

Circuit Diagram (M/T) (A/T) ...
