Components

[LHD]

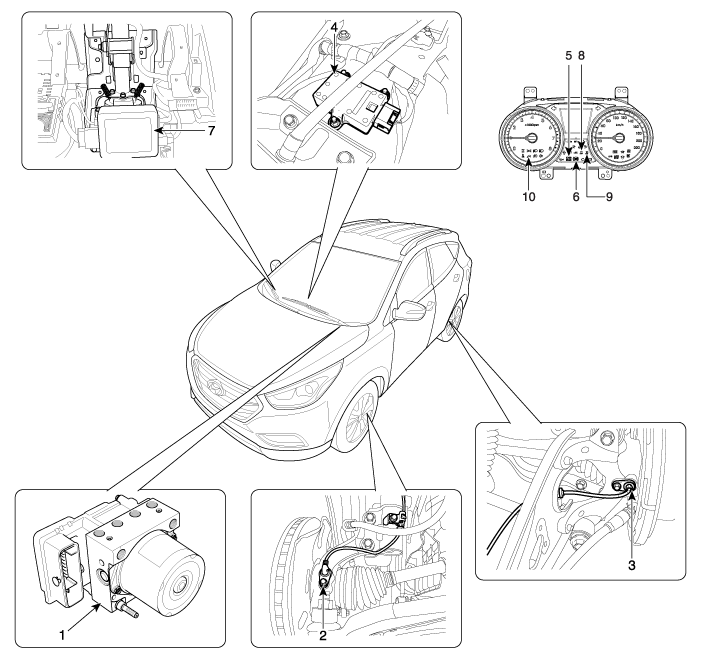

1. ESC control module (HECU)
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. Longitudinal G sensor (4WD only)
5. Parking brake/ EBD warning lamp

6. ESC warning lamp
7. Steering angle sensor
8. ESC warning lamp
9. ESC off lamp
10. DBC warning lamp

[RHD]

1. ESC control module (HECU)
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. Longitudinal G sensor (4WD only)
5. Parking brake/ EBD warning lamp

6. ESC warning lamp
7. Steering angle sensor
8. ESC warning lamp
9. ESC off lamp
10. DBC warning lamp

ESC(Electronic stability system) System

...

Description and Operation

Description of ESC Optimum driving safety now has a name : ESC, the Electronic Stability Program. ESC recognizes critical driving conditions, such as panic reactions in dangerous situations, a ...
