Hyundai Tucson: Power Door Mirrors / Components and Components Location

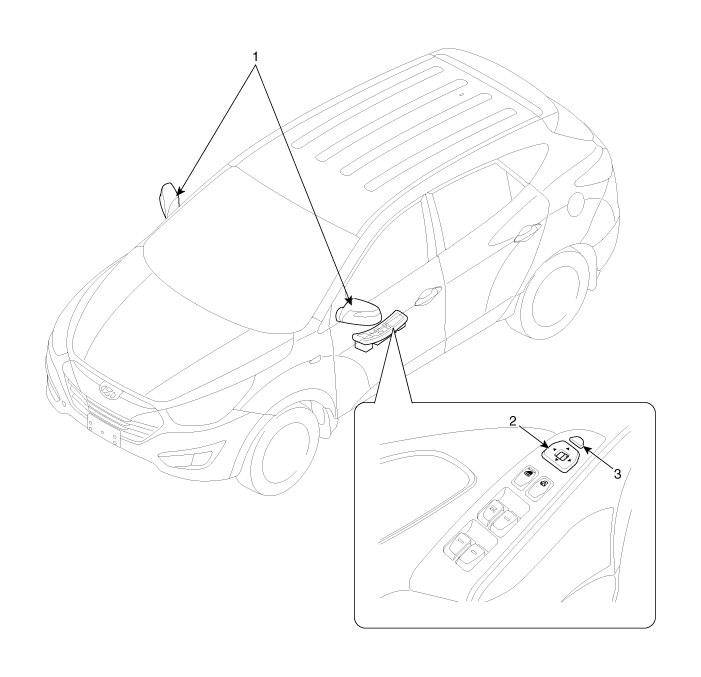

| Component Location |
| 1. Power door mirror 2. Power door mirror switch | 3. Power folding mirror switch |
Power Door Mirror Switch Schematic Diagrams
Circuit Diagram
...
