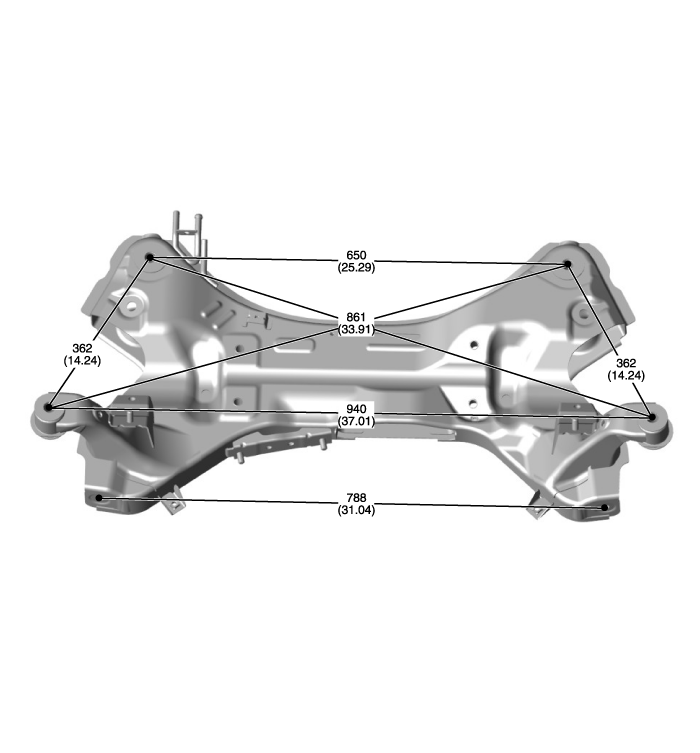

| Front Cross Member |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

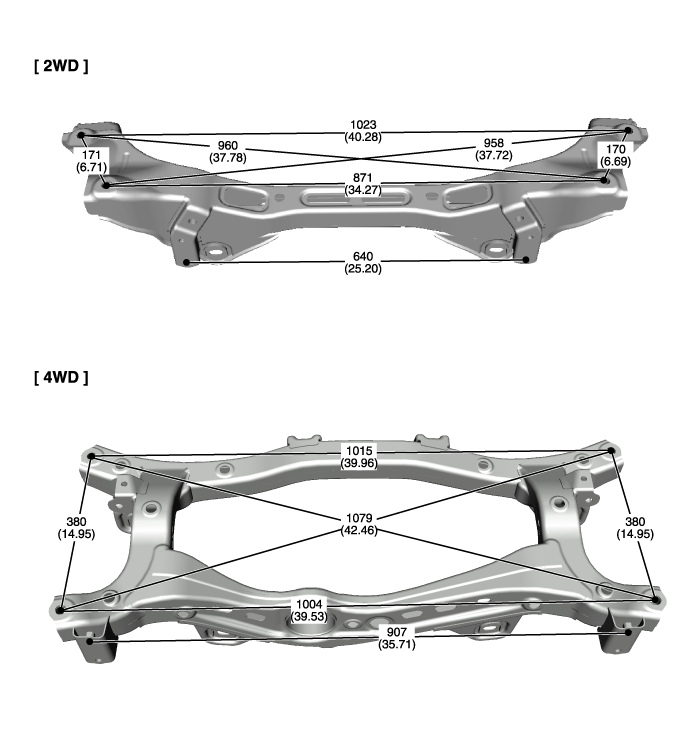

| Rear Cross Member |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
