Hyundai Tucson: Automatic Transaxle Control System / Line Pressure Control Solenoid Valve Schematic Diagrams

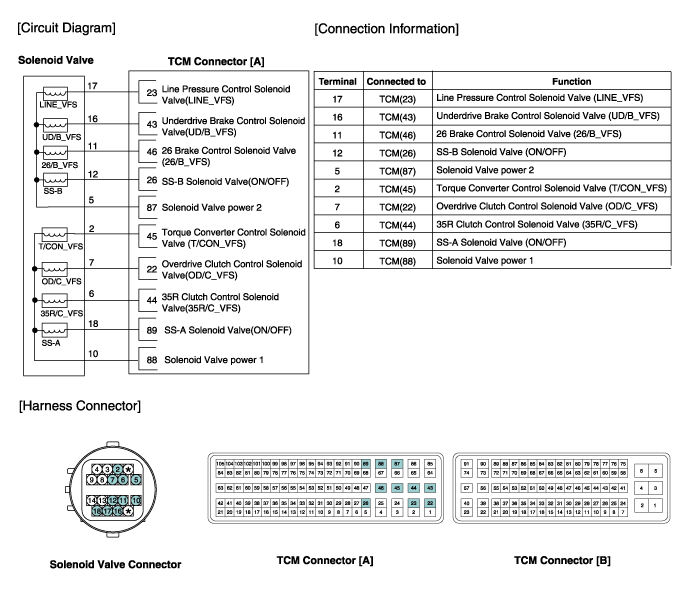

| Circuit Diagram |
Line Pressure Control Solenoid Valve Specifications
Specifications
Direct control VFS[LINE Pressure]
x Control type : Normal high type
Control Pressure kpa (kgf/cmx, psi)500.14 ~ 9.81(5.1 ~ 0.1,72.54 ~ 1.42)Current value(mA)50 ~ 850 Intern ...
Line Pressure Control Solenoid Valve Repair procedures
Inspection
1.
Turn ignition switch OFF.
2.
Disconnect the solenoid valve sensor connector.
3.
Measure resistance between sensor signal terminal and sensor ground terminal.
4.
Check th ...
