| Removal |
Driver Door Mirror Switch
| 1. |
Disconnect the negative battery terminal. |
| 2. |
Remove the front door trim.
(Refer to the BD group - "Front door") |
| 3. |

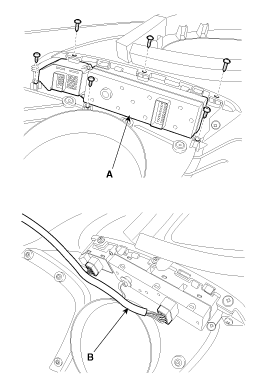

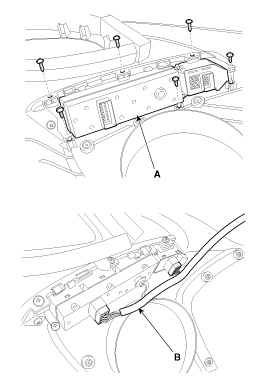

Remove the screws from power window switch (A) and connectors (B).
[LHD]
[RHD]
|
| 4. |
Remove the driver power window switch (A) from front door trim.
[LHD]
[RHD]
|
| Installation |
Driver Door Mirror Switch
| 1. |
Install the driver power window switch and connectors. |
| 2. |
Install the front door trim. |
| Inspection |
| 1. |
Remove the front door trim and power door mirror switch module (A).
[LHD]
[RHD]
|
| 2. |
Check for the continuity between terminals of power door mirror switch according to the table.
|
Power Door Mirror Switch Schematic Diagrams
Circuit Diagram
...
Power Door Mirror Actuator Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door delta cover.
(Refer to the BD group - "Front door")
3.
Disconnect the connector from the door mirror.
...
