Hyundai Tucson: Seat & Power Seat / Rear Seat Components and Components Location

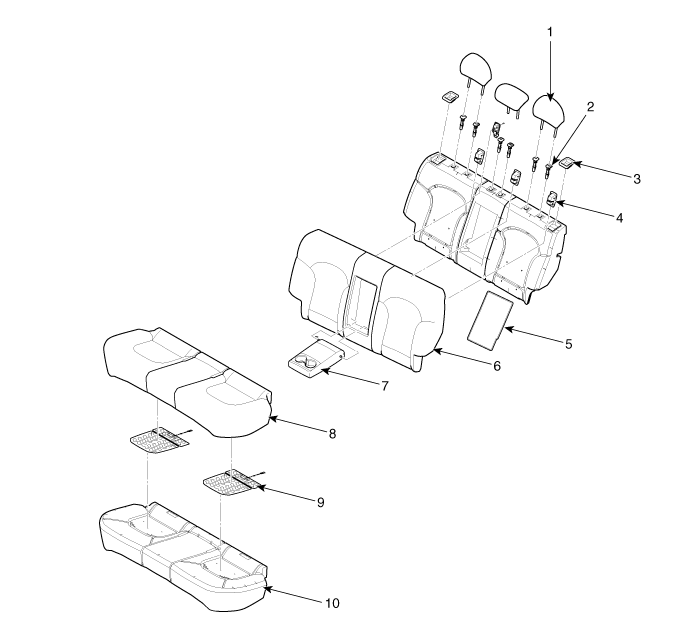

| Components |
| 1. Headrest 2. Headrest guide 3. Upper bezel 4. Tether anchor garnish 5. Armrest cover | 6. Seat back cover 7. Armrest 8. Seat cushion cover 9. Seat warmer 10. Seat cushion pad |
Front Seat Repair procedures
Replaccement
Seat Assembly Replacement
1.
Remove the seat mounting cover.
2.
After loosening the seat assembly mounting bolts, remove the seat assembly (A).
Tightening torque :
44.1 ~ 58. ...
Rear Seat Repair procedures
Replacement
Seat Assembly Replacement
1.
After loosening the mounting bolts, then remove the rear seat back assembly (A).
Tightening torque :
44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb- ...
