✽ NOTICE
It is permissible to add 3psi (21 kPa) to the standard tire pressure specification if colder temperatures are expected soon. Tires typically loose 1psi for every 12°F (-11°C) temperature drop. If extreme temperature variations are expected, re-check your tire pressure as necessary to keep them properly inflated.
CAUTION

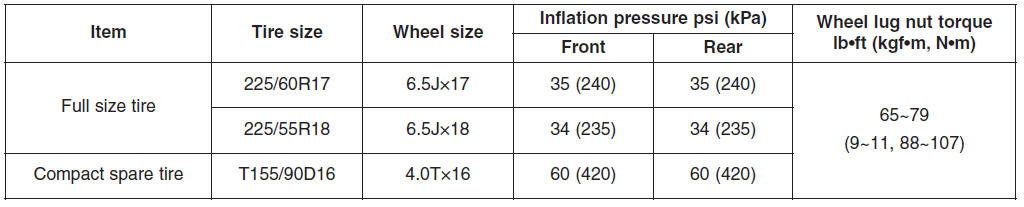

When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make it work irregularly.
Hyundai Tucson (LM) 2010-2015 Service Manual: 26 Brake Control Solenoid Valve(26/B_VFS) Repair procedures
Inspection
1.
Turn ignition switch OFF.
2.
Disconnect the solenoid valve connector.
3.
Measure resistance between sensor signal terminal and sensor ground terminal.
4.
Check that the resistance is within the specification.
Removal
Replacing an on/off soleno ...
Hyundai Tucson (LM) 2010-2015 Service Manual: Output Speed Sensor Troubleshooting
Signal Waveform
Fig 1) Input/Output speed sensor at low speed
Fig 2) Input/Output speed sensor at high speed ...
