Hyundai Tucson: Tire Pressure Monitoring System / TPMS Receiver Schematic Diagrams
Hyundai Tucson (LM) 2010-2015 Service Manual / Suspension System / Tire Pressure Monitoring System / TPMS Receiver Schematic Diagrams

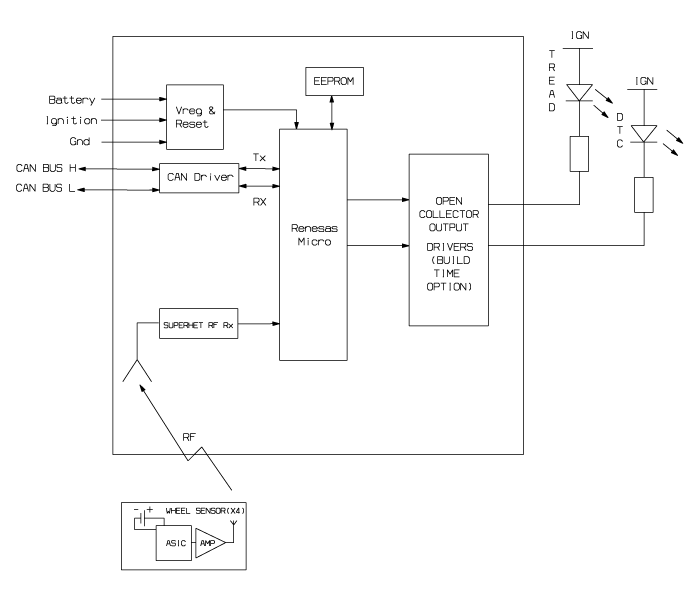

| Schematic diagram |
| Connector Information |
| Pin | Description |
| 1 | Battery |
| 2 | CAN_High |
| 3 | GND |
| 4 | - |
| 5 | - |
| 6 | - |
| 7 | IGN |
| 8 | CAN_Low |
| 9 | - |
| 10 | - |
| 11 | - |
| 12 | - |
TPMS Receiver Description and Operation
Description
1.
Mode
(1)
Virgin State
A.
The receiver as a sole part is shipped in this state. Replacement parts should therefore arrive in this state.
B.
In this state, there is no sensor ...
TPMS Receiver Repair procedures
Replacement
When the receiver first arrives for replacement:
1)
It will be in Virgin State.
2)
It will not be configured for any specific platform.
3)
It will not ha ...
