Hyundai Tucson: ESC(Electronic stability system) System / Yaw-rate and G Sensor Repair procedures

Hyundai Tucson (LM) 2010-2015 Service Manual / Brake System / ESC(Electronic stability system) System / Yaw-rate and G Sensor Repair procedures

Removal

1.	Turn ignition switch OFF and disconnect the negative (-) battery cable.

2.	Remove the floor console.

3.	Disconnect the yaw rate & lateral & Longitudinal G sensor connector (A).

Remove the mounting bolts (B).

Tightening torque:

7.9 ~ 10.8 N.m (0.8 ~ 1.1 kgf.m, 5.8 ~ 8.0 Ib-ft)

5.	Installation is the reverse of removal.

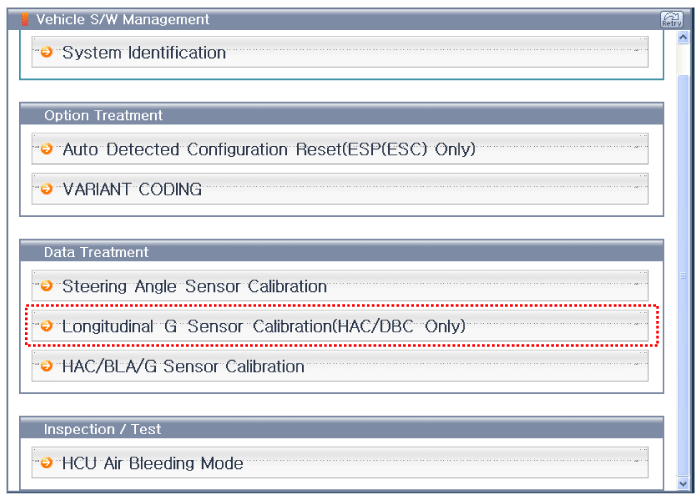

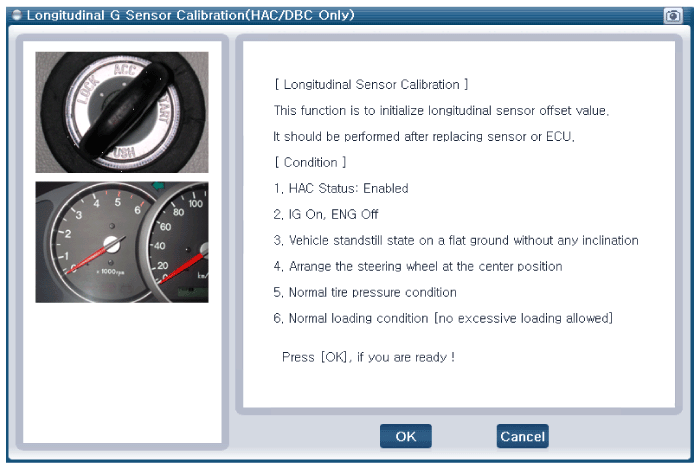

6.	Perform the Longitudinal Sensor Caliblation.
