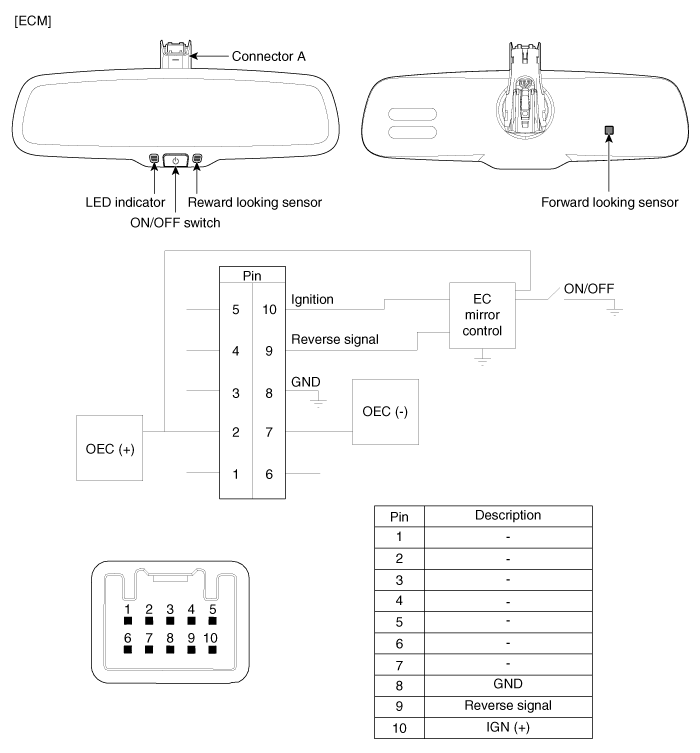

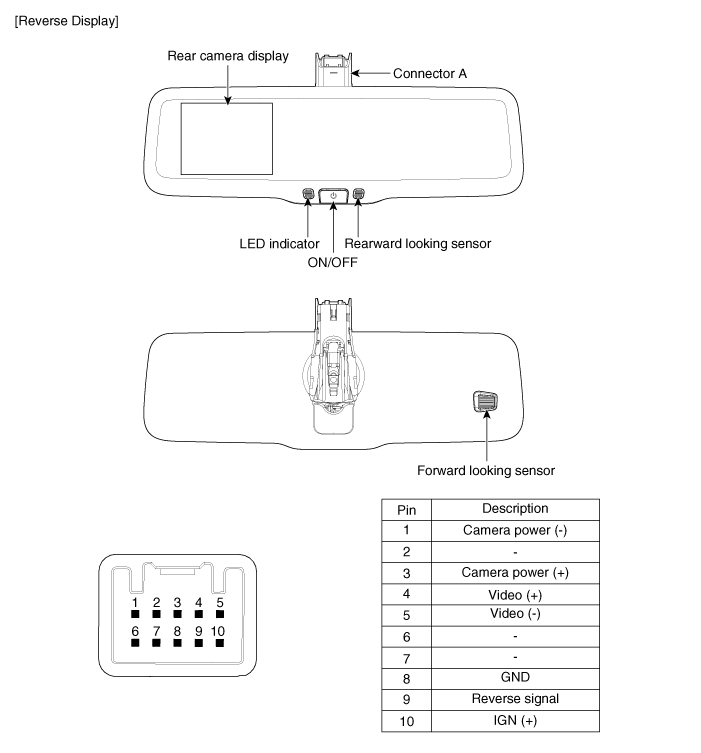

Hyundai Tucson: Electro chromic Inside Rear View Mirror / Components and Components Location

Electro chromic Inside Rear View Mirror

...

Description and Operation

Description The ECM (Electro Chromatic inside rear view Mirror) is for dimming the reflecting light from a vehicle behind at night, in order the user not to be dazzled by the light. The forward ...
