Hyundai Tucson: Interior lights / Front lamps

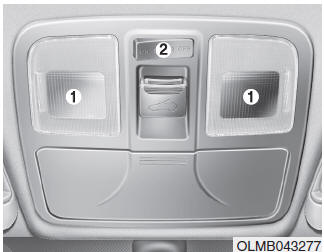

(1) Front Map Lamp

(2) Front Door Lamp

Front Map Lamp:

Press either the right or left lens to turn the map lamp on or off. This light produces a spot beam for convenient use as a map lamp at night or as a personal lamp for the driver and the front passenger.

Front Door Lamp:

The Front Door Lamp Switch activates the front and rear room lamps when the switch is pressed in either of the three positions indicated below:

DOOR:

With the switch in this position, the front and rear room lamps come on when the front or rear doors are opened, or when the doors are unlocked by the remote key or smart key.

Once all doors are closed, the room lamps will go out gradually after about 30 seconds.

If a door is open with the ignition switch in the ACC position or the LOCK/OFF position, the lamps will remain on for about 20 minutes. If a door is open with the ignition switch in the ON position, the lamps will stay on continuously.

ON :

With the Front Door Room Lamp in this position, the front and rear room lamps remain on at all times.

OFF :

With the Front Door Room Lamp in this position the front and rear room lamps remain off at all times.
