Hyundai Tucson: System controllers and functions / Audio Head Unit (for XM RADIOTM equipped model)

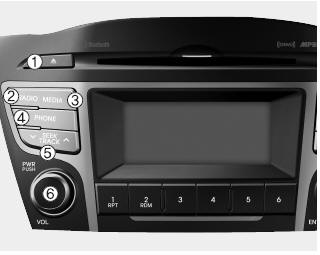

1. (EJECT)

Ejects the disc.

2.

❈ In Setup>Display, the radio pop up screen will be displayed when [Mode Pop up] is turned  .

When the pop up screen is displayed, use the TUNE knob or keys to select the desired mode.

3.

❈ In Setup>Display, the media pop up screen will be displayed when [Mode Pop up] is turned   .

When the pop up screen is displayed, use the TUNE knob or keys to select the desired mode.

4.

 Operates Phone Screen

❈ When a phone is not connected, the connection screen is displayed.

5.

❈ The Play/Pause feature may operate differently depending on the mobile phone.

6. PWR/VOL knob

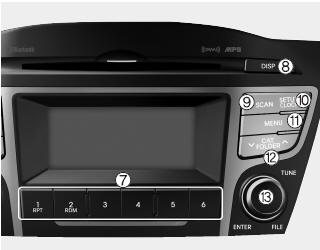

7. (Preset)

:Repeat

- :Random

8.

Each time the button is shortly pressed (under 0.8 seconds), it sets the screen Off ➟ Screen On ➟ Screen Off

❈ Audio operation is maintained and only the screen will be turned Off. In the screen Off state, press any key to turn the screen On again.

9.

Radio Mode

- Shortly press the key (under 0.8 seconds): Previews each broadcast for 5 seconds each.

- Press and hold the key (over 0.8 seconds): Previews the broadcasts saved in Preset   ~  for 5 seconds each.

❈ Press the  key again to continue listening to the current frequency.

❈ XM Radio™ does not support the Preset scan feature.

CD, USB, My Music mode

Shortly press the key (under 0.8 seconds): Previews each song (file) for 10 seconds each.

❈ Press the key again to continue listening to the current song (file).

10.

11.

Displays menus for the current mode.

❈ iPod® List :Move to parent category

12.

 Radio Mode

- XM RADIO™ : Category Search

MP3, CD, USB mode : Folder Search

13. TUNE knob

❈ When the desired song is displayed, press the knob to play the song.

Moves focus in all selection menus and selects menus.

14. DISC-IN LED

LED that indicates whether a disc is inserted

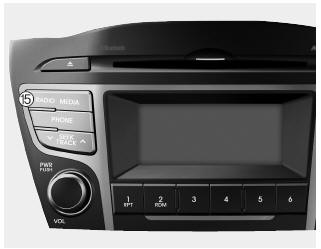

15.

Changes to FM/AM mode.

Each time the key is pressed, the mode is changed in order of FM1 ➟ FM2.

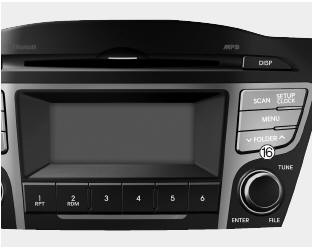

16.

CD MP3, USB mode : Folder Search
