Hyundai Tucson: Engine Control System / Accelerator Position Sensor (APS) Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Control / Fuel System / Engine Control System / Accelerator Position Sensor (APS) Schematic Diagrams

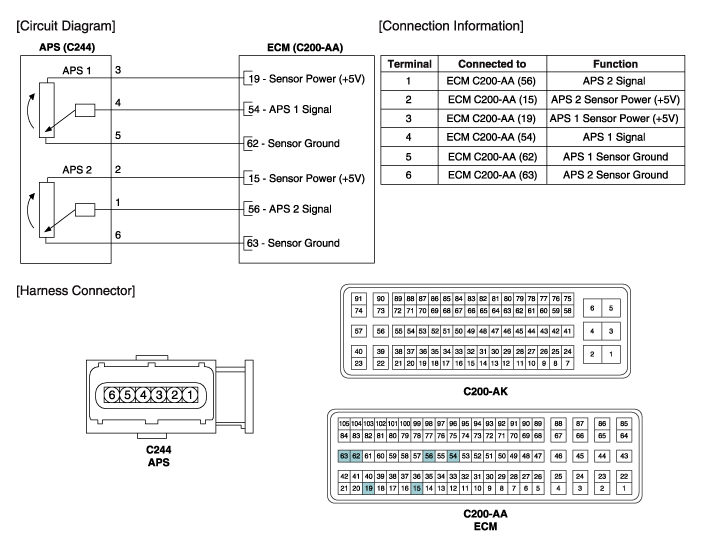

Circuit Diagram
(M/T)

(A/T)

Accelerator Position Sensor (APS) Specifications
Specification AcceleratorPositionOutput Voltage (V)APS1APS2C.T0.7 ~ 0.80.29 ~ 0.46W.O.T3.85 ~ 4.351.93 ~ 2.18 ...

Accelerator Position Sensor (APS) Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Turn the ignition switch ON. 3. Measure the output voltage of the APS 1 and 2 at C.T and W.O.T. Specification: Refer t ...
