Hyundai Tucson: Automatic Transaxle System / Automatic Transaxle Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Automatic Transaxle System / Automatic Transaxle System / Automatic Transaxle Components and Components Location

Components Location

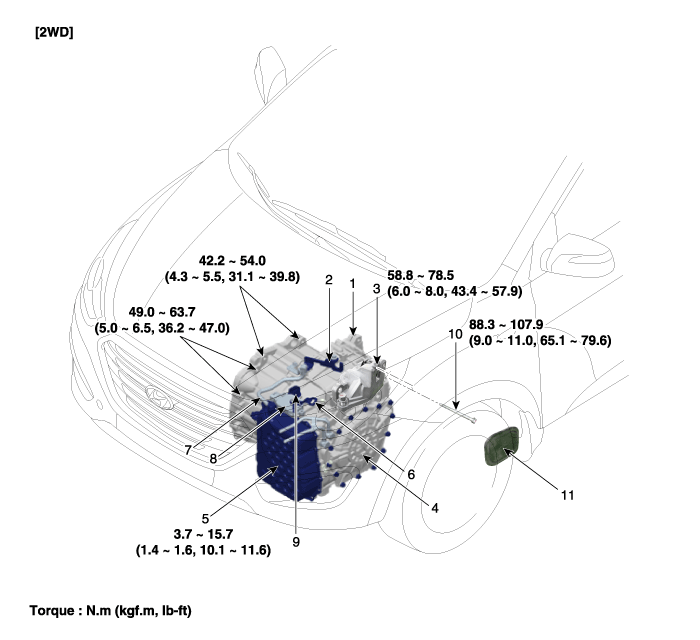

1. Automatic transaxle assembly
2. Shift cable bracket
3. Automatice transaxle mounting support bracket
4. Rear cover
5. Valve body cover
6. Manual control lever
7. Air breather hose
8. Inhibitor switch
9. Solenoid valve connector
10. Automatice transaxle mounting bracket bolt
11. Automatice transaxle mounting bracket cover

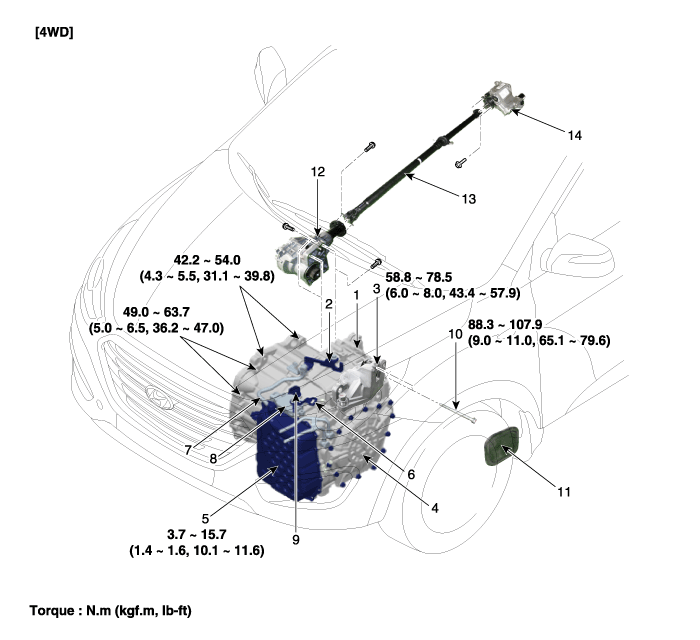

1. Automatic transaxle assembly
2. Shift cable bracket
3. Automatice transaxle mounting support bracket
4. Rear cover
5. Valve body cover
6. Manual control lever
7. Air breather hose
8. Inhibitor switch
9. Solenoid valve connector
10. Automatice transaxle mounting bracket bolt
11. Automatice transaxle mounting bracket cover
12. Transfer assembly
13. Propeller shaft assembly
14. Coupling assembly
