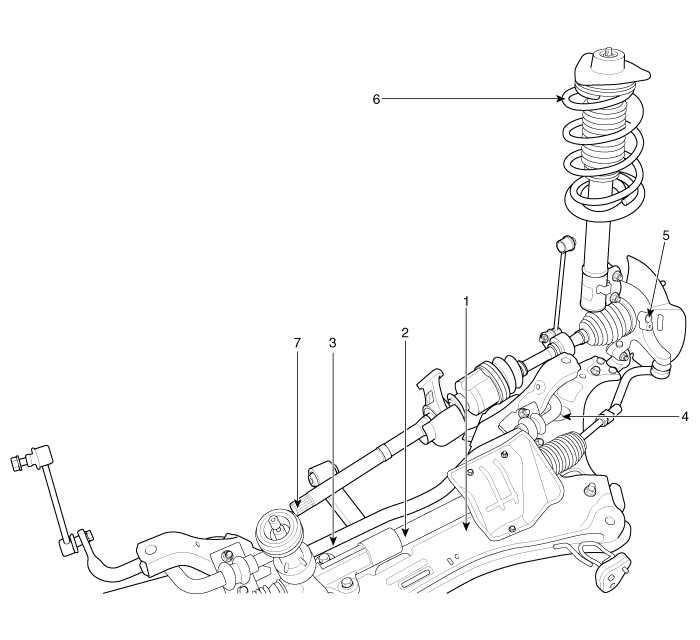

Components

1. Sub frame
2. Steering gearbox
3. Front stabilizer bar
4. Front lower arm

5. Front axle
6. Front strut assembly
7. Drive shaft

Front Suspension System

...

Front Strut Assembly Components and Components Location

Components 1. Dust cover2. Upper mounting nut3. Self locking nut4. Insulator5. Spring upper pad6. Strut dust cover & Bumper rubber7. Coil spring8. Spring lower pad9. Piston rod10. Strut asse ...
