Hyundai Tucson: Towing / Emergency towing

If towing is necessary, we recommend you have it done by an authorized HYUNDAI dealer or a commercial tow truck service.

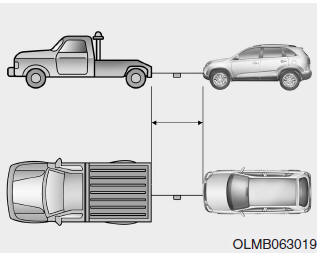

If towing service is not available in an emergency, your vehicle may be temporarily towed using a cable or chain secured to the emergency towing hook at the front (or rear) of the vehicle.

Use extreme caution when towing the vehicle with a cable or chain. A driver must be in the vehicle to steer it and operate the brakes.

Towing in this manner may be done only on hard-surfaced roads for a short distance and at low speeds.

Also, the wheels, axles, power train, steering and brakes must all be in good condition.

Always follow these emergency towing precautions:

CAUTION

To avoid damage to your vehicle and vehicle components when towing:

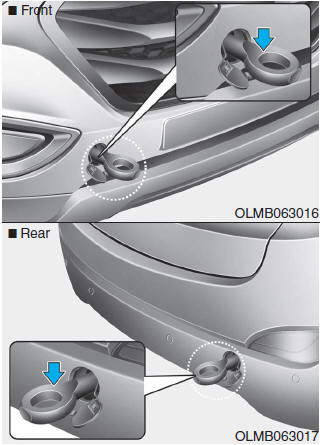

Removable towing hook
1.Open the tailgate, and remove the towing hook from the tool case. 2.Remove the hole cover pressing the lower part of the cover on the front or rear bumper. 3.Install the towing hook by turning ...

Tie-down hook
WARNING Do not use the tie-down hook(s) for towing purposes. If the tiedown hook(s) are used for towing, the tie-down hook(s) or bumper will be damaged and this could lead to serious injury. ...
