Hyundai Tucson: Engine And Transaxle Assembly / Engine Mounting Components and Components Location

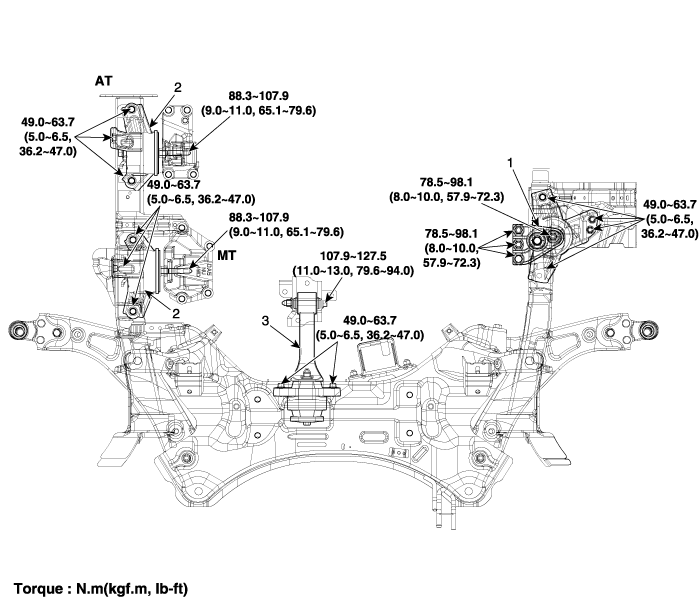

Components

1. Engine mounting bracket
2. Transaxle mounting bracket
3. Roll rod bracket

Engine And Transaxle Assembly
...

Engine And Transaxle Assembly Repair procedures
Removal     • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion. ...
