Hyundai Tucson: Outside thermometer / Fan speed control

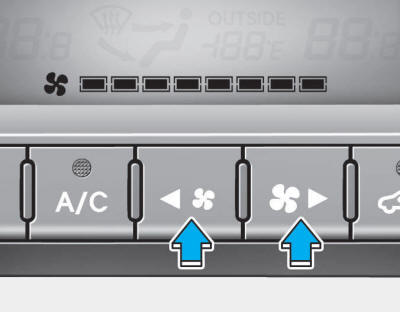

The fan speed can be set to the desired speed by operating the fan speed control switches.

To change the fan speed, press the ( ) the switch for higher speed, or press the ( ) switch for lower speed. To turn the fan speed control off, press the front blower OFF button.

Air intake control
The air intake control button is used to select the outside (fresh) air position or recirculated air position. To change the air intake control position, push the control button. Recirculated ...

Air conditioning
Press the A/C button to turn the air conditioning system on (indicator light will illuminate). Press the button again to turn the air conditioning system off. ...
