Hyundai Tucson: Brake System / Brake Pedal Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Brake System / Brake System / Brake Pedal Components and Components Location

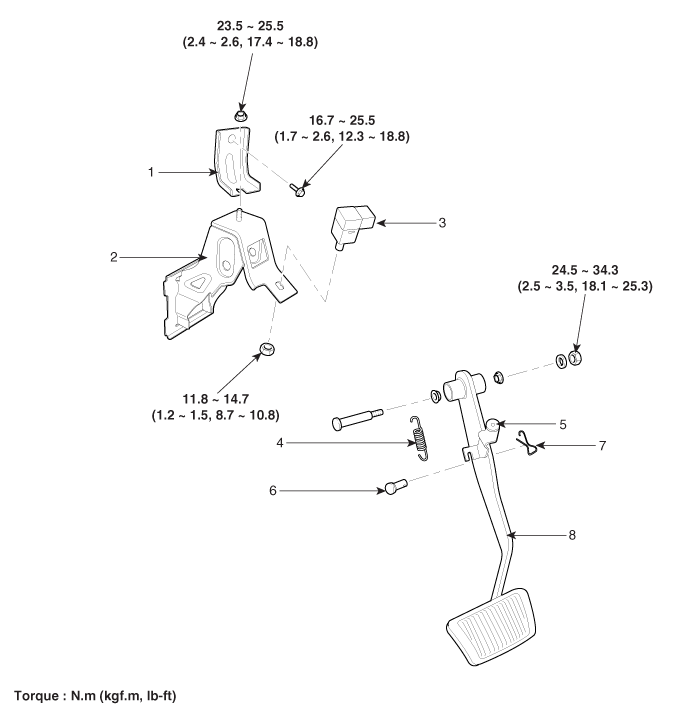

Components

1. Cowl bracket
2. Brake pedal member assembly
3. Stop lamp switch
4. Return spring
5. Brake pedal stopper
6. Clevis pin
7. Snap pin
8. Brake pedal
