Hyundai Tucson: Clutch System / Clutch Pedal Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Clutch System / Clutch System / Clutch Pedal Components and Components Location

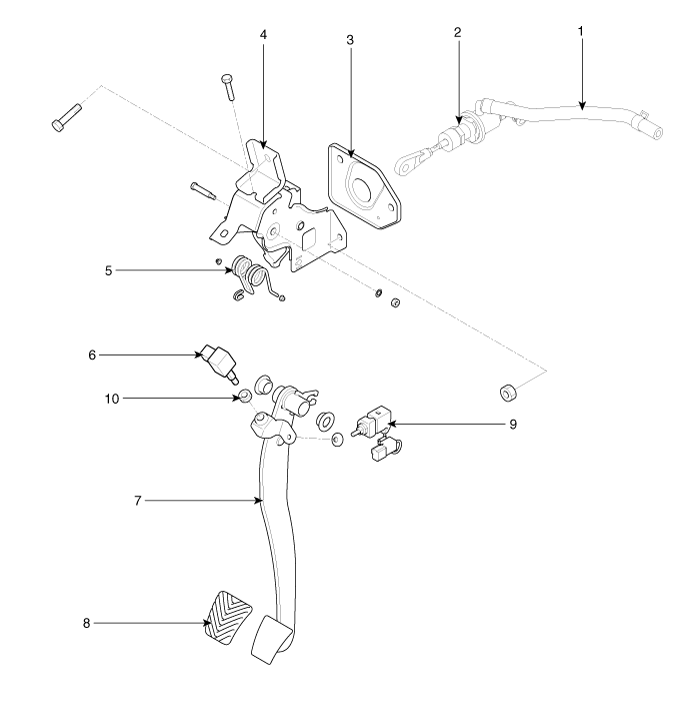

Components

1. Reverse hose
2. Master cylinder
3. Siller
4. Member assembly
5. Turn over spring
6. Clutch switch
7. Clutch arm
8. Pedal pad
9. Ignition lock switch
10. Stopper

Clutch Cover And Disc Repair procedures
Removal 1. Remove the transaxle assembly. (Refer to "Manual transaxle system" in MT group) 2. Remove the clutch cover bolts.     • Be careful not to be bent or twist ...

Clutch Pedal Repair procedures
Inspection Clutch Pedal Inspection 1. Measure the clutch pedal height (from the face of the pedal pad to the floor board) and the clutch pedal clevis pin play (measured at the face of the pe ...
