Hyundai Tucson: Door locks / Operating door locks from inside the vehicle

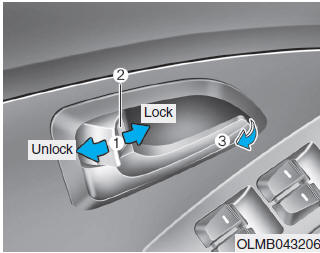

With the door lock button:

✽ NOTICE

If a power door lock ever fails to function while you are in the vehicle try one or more of the following techniques to exit: Operate the door unlock feature repeatedly (both electronic and manual) while simultaneously pulling on the door handle. Operate the other door locks and handles, front and rear. Lower a front window and use the mechanical key to unlock the door from outside.

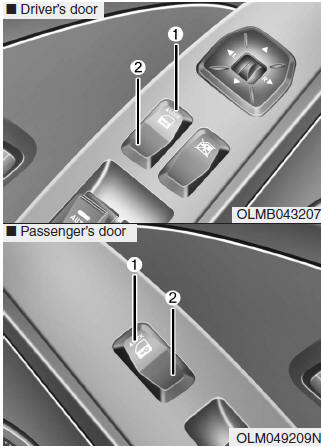

With the central door lock switch:

When pressing the front portion (1) of the switch, all vehicle doors will lock.

When pressing the rear portion (2) of the switch, all vehicle doors will unlock.

WARNING

The doors should always be fully closed and locked while the vehicle is in motion. If the doors are unlocked, the risk of being thrown from the vehicle in a crash is increased.

WARNING

Do not leave children or animals unattended in your vehicle. An enclosed vehicle can become extremely hot, causing death or serious injury to unattended children or animals who cannot escape the vehicle. Children might operate features of the vehicle that could injure them, or they could encounter other harm, possibly from someone gaining entry to the vehicle.

WARNING

Always secure your vehicle.

Leaving your vehicle unlocked increases the potential risk to you or others from someone hiding in your vehicle. To secure your vehicle, while depressing the brake, move the shift lever to the P (Park) position, engage the parking brake, and place the ignition switch in the LOCK/OFF position, close all windows, lock all doors, and always take the key with you.

WARNING

Opening a door when something is approaching may cause damage or injury. Be careful when opening doors and watch for vehicles, motorcycles, bicycles or pedestrians approaching the vehicle in the path of the door.

Smart key
To lock the doors, press the button on the outside door handle while carrying the smart key with you or press the door lock button on the smart key. Press the button on the outside door handle wh ...

Auto door lock/unlock features
All doors will be automatically locked when shifting the transaxle shift lever out of P (Park) with the engine is running. All doors will be automatically unlocked when shifting the transaxle ...
