Hyundai Tucson: Bumper / Rear Bumper Repair procedures

Hyundai Tucson (LM) 2010-2015 Service Manual / Body (Interior and Exterior) / Bumper / Rear Bumper Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

•	Take care not bend or scratch the cover and other parts.

1.	After loosening the mounting screws, then remove the rear combination lamp (A).

2.	Push the lock pin, disconnect the connector (A).

3.	After loosening the rear bumper side's mounting screw and clips, then disconnect the side's.

4.	Loosen the mounting bolts.

5.	Push the lock pin, disconnect the rear bumper main connector (B).

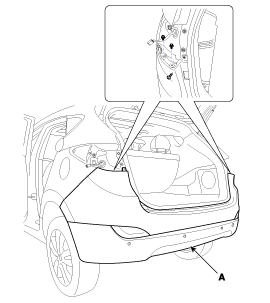

6.	After loosening the mounting screws and clips, then remove the rear bumper (A).

Install in the reverse order of removal.

•	Make sure the connector is plugged in properly.

•	Replace any damage clips.

Rear Bumper Components and Components Location

Components 1. Rear bumper assembly2. Rear bumper mounting bracket ...
