Hyundai Tucson: Light bulbs / Rear combination light bulb replacement

Hyundai Tucson (LM) 2010-2015 Owners Manual / Maintenance / Light bulbs / Rear combination light bulb replacement

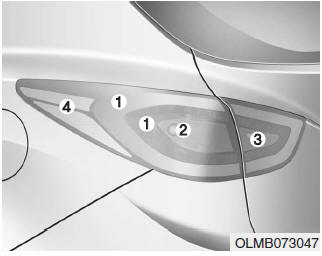

(1) Stop/tail light

(2) Turn signal light

(3) Back-up light

(4) Side marker
