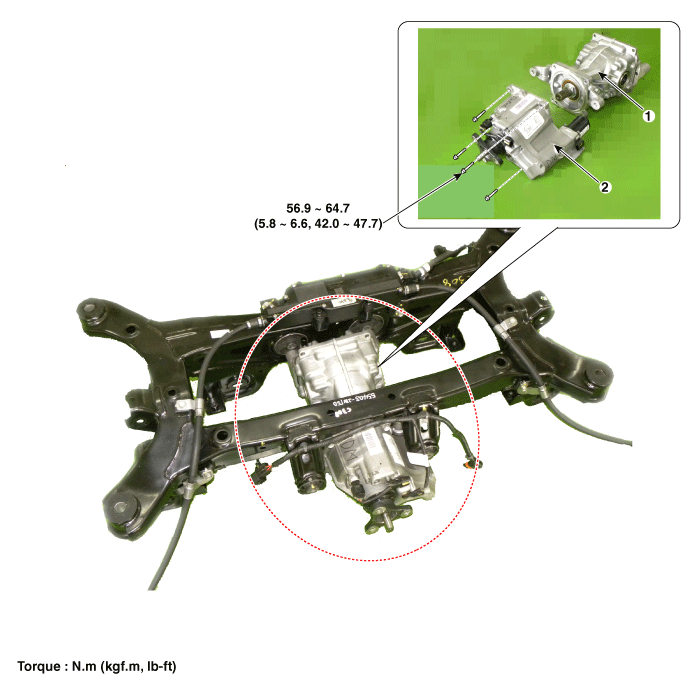

Components Location

1. Rear Differential Carrier
2. Coupling Assembly

Components

1. Pinion lock nut
2. Pinion oil seal
3. Pinion front bearing
4. Differential case bracket
5. Differential case
6. Pinion bearing spacer
7. Drive gear
8. Ring gear
9. Gear carrier assembly
10. Side bearing outer race
11. Spacer
12. Bearing cap
13. Differential rear cover.

Differential Carrier Assembly
...

Rear Differential Carrier Repair procedures
Replacement 1. Drain the differential gear oil. 2. Remove the rear drive shaft. 3. Remove the propeller shaft. 4. Disconnect the coupling control connector (A). 5. Support the dif ...
