Hyundai Tucson: AVN System / Roof Antenna Repair procedures

Hyundai Tucson (LM) 2010-2015 Service Manual / Body Electrical System / AVN System / Roof Antenna Repair procedures

Removal

1.	Remove the rear roof trim. (Refer to Body - "Roof Trim Assembly")

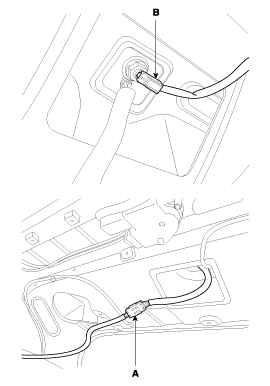

2.	Disconnect the roof antenna connectors (A) and cable (B) from the roof antenna.

3.	Remove the roof antenna (A) after removing a nut.

Installation

1.	Connect the roof antenna connectors.

Install the rear roof trim.

-	Make sure that the cables and connectors are plugged in properly.

-	Check the audio system.
