Hyundai Tucson (LM) 2010-2015 Service Manual / Body Electrical System / AVN System / Roof Antenna Components and Components Location

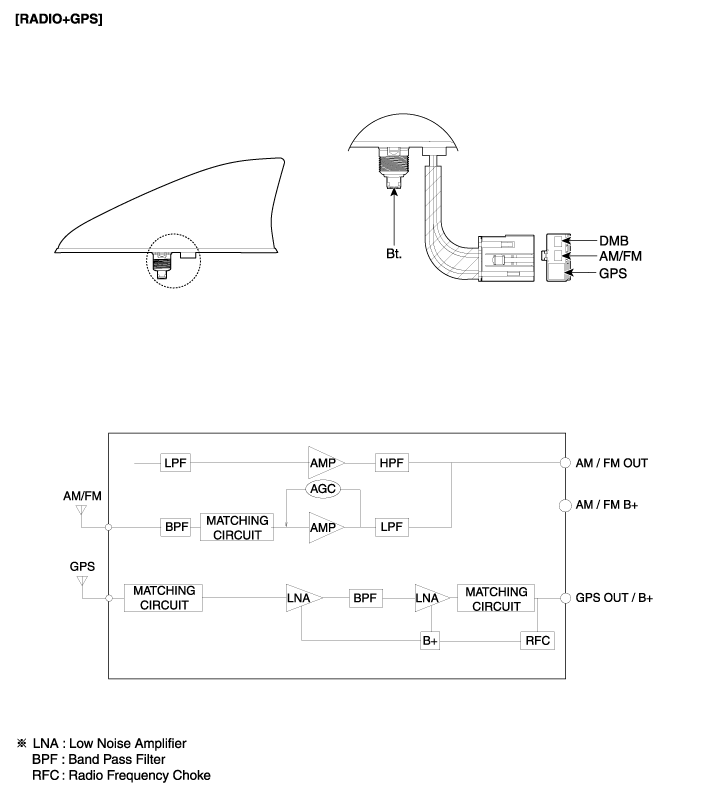

Components

External Amplifier Repair procedures
Removal External Amplifier 1. Remove the rear right luggage side trim. (Refer to Body - "Interior Trim") 2. Remove the external amplifier (B) after disconnecting the connectors (A) and loose ...

Roof Antenna Repair procedures
Removal 1. Remove the rear roof trim. (Refer to Body - "Roof Trim Assembly") 2. Disconnect the roof antenna connectors (A) and cable (B) from the roof antenna. 3. Remove the roof antenna ...
