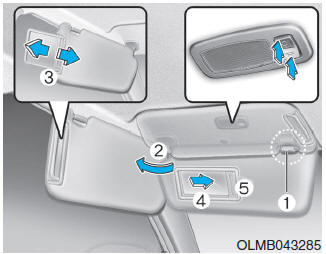

To use a sunvisor, pull it downward. To use a sunvisor for a side window, pull it downward, unsnap it from the bracket (1) and swing it to the side (2).
To use the vanity mirror, pull down the sunvisor and slide the mirror cover (4).
Adjust the sunvisor forward or backward (3) as needed. Use the ticket holder (5) to hold tickets.
✽ NOTICE
Always have the vanity mirror lamp switch in the OFF position when the vanity mirror lamp is not in use.
WARNING
For your safety, do not block your view when using the sunvisor.
CAUTION
Always use the sunvisor extension, after swinging the sunvisor to the side.
