Hyundai Tucson: Body Dimensions / Under Body Body Repair

Projected Dimensions [2WD]

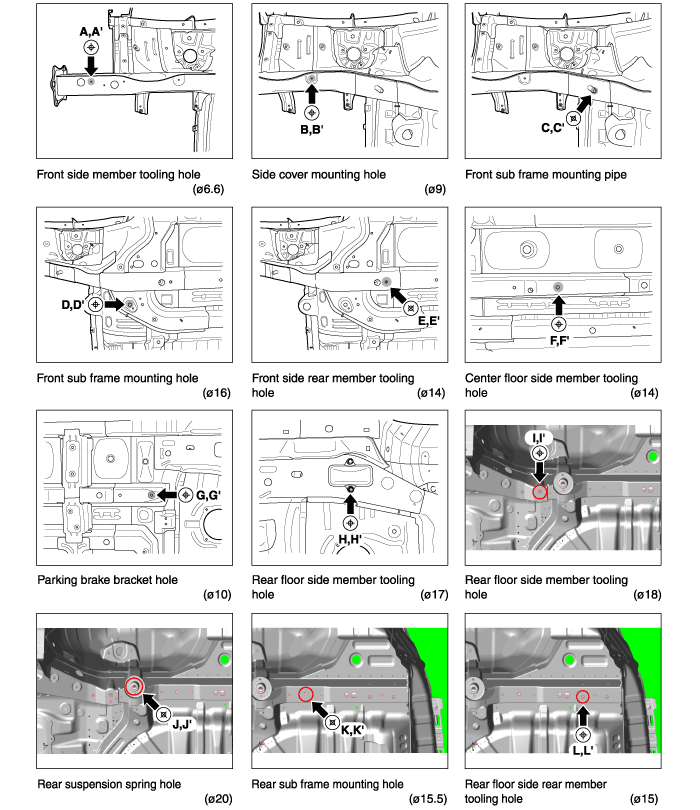

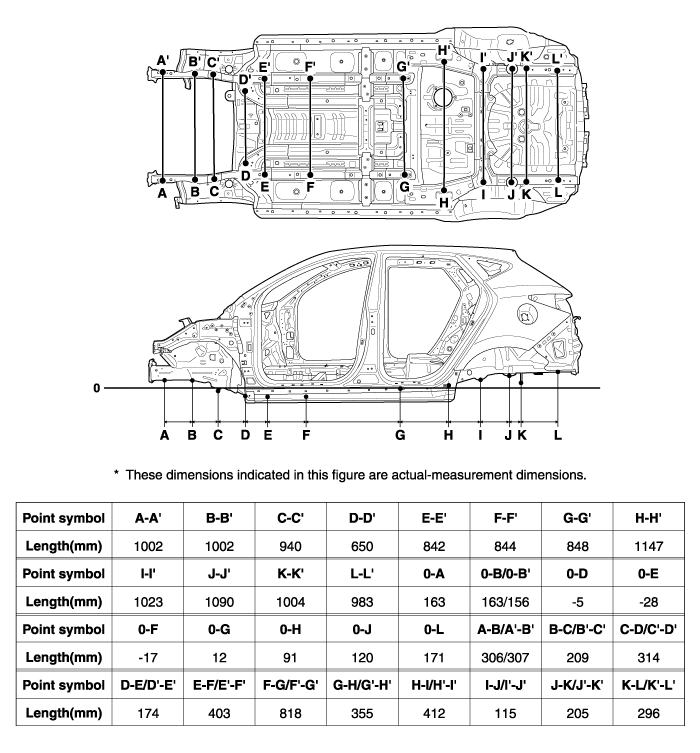

Actual- Measurement Dimensions [2WD]

Projected Dimensions [4WD]

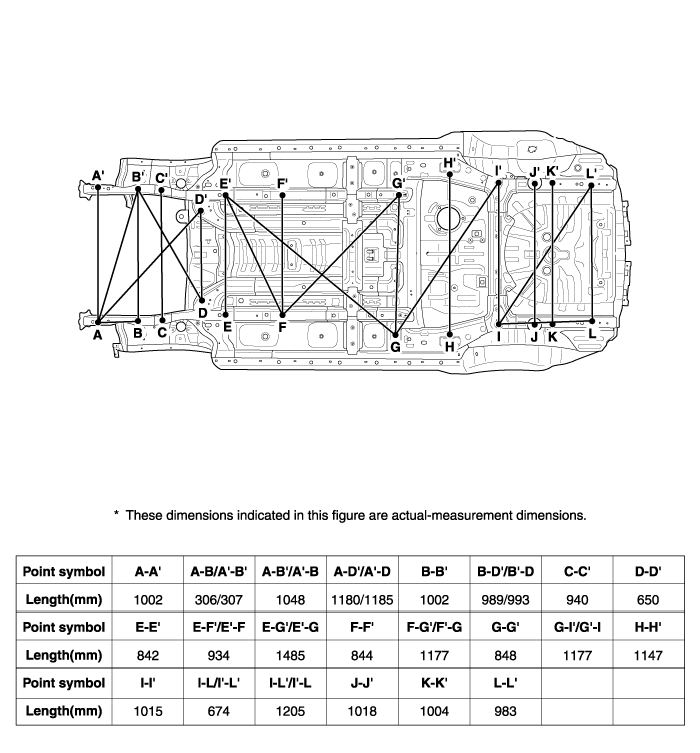

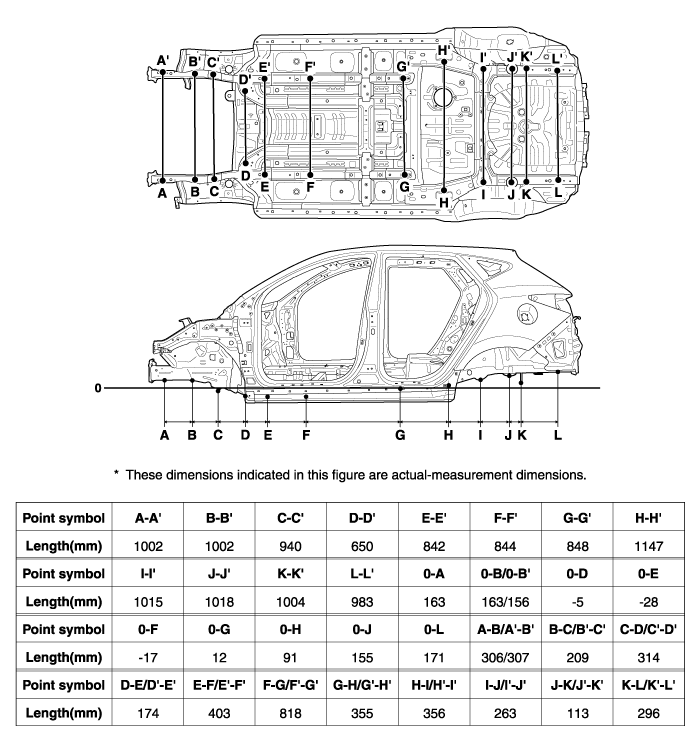

Actual- Measurement Dimensions [4WD]

Rear Body Body Repair
...

Body Panel Gaps Body Repair
Side Dimension ...
