Hyundai Tucson: Hydraulic System / Valve Body Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Automatic Transaxle System / Hydraulic System / Valve Body Components and Components Location

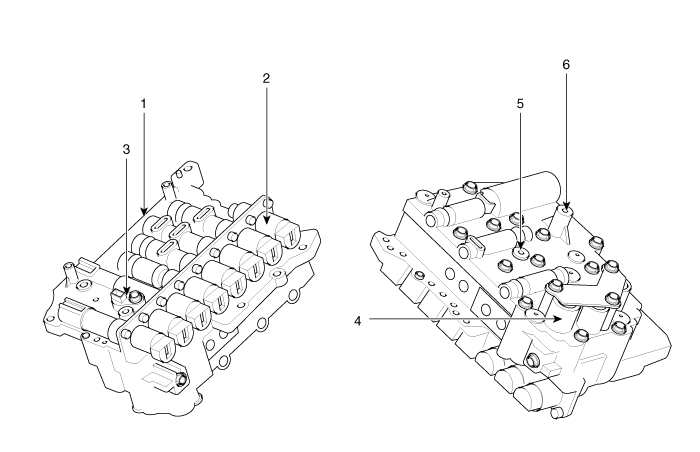

Components Location

1. PCV adjust screw
2. Solenoid valve
3. Oil temperature sensor

4. Accumulator
5. Under drive brake (UD/B) pressure flow hole
6. Low & reverse brake (LR/B) pressure flow hole

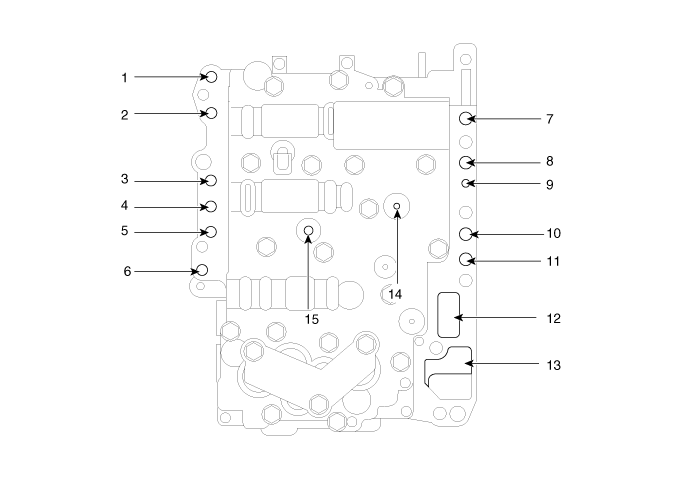

Valve Body Flow

1. To cooler
2. From cooler
3. Lubrication(rear)
4. Overdrive pressure
5. Reducing pressure (red2)
6. Reducing pressure (red1)
7. Damper release pressure
8. Damper apply pressure

9. Lubrication (front)
10. 35R clutch pressure
11. 26 brake pressure
12. From oil pump
13. To oil pump
14. Underdrive pressure
15. Low & reverse pressure

Valve Body Description and Operation

Description The valve body is essential to automatic transaxle control and consists of various valves used to control the oil feed from the oil pump. Specifically, these valves ...

Valve Body Repair procedures

Removal 1. Remove the air duct. (Refer to Engine Mechanical System - "Air cleaner") 2. Remove the battery and the battery tray. (Refer to Engine Electrical System - "Battery") 3. Remo ...
