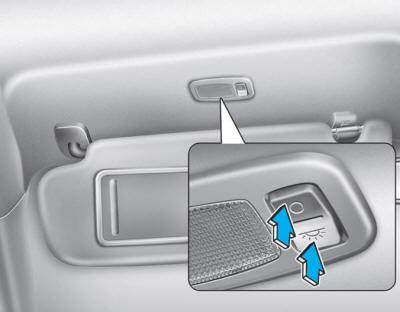

Hyundai Tucson: Interior lights / Vanity mirror lamp (if equipped)
Push the switch to turn the light ON or OFF.
: The lamp will turn on if
this button is pressed.
: The lamp will turn off if
this button is pressed.
Rear lamps
(1) Rear Room Lamp
Rear ROOM Lamp Switch:
Press this switch to turn the room lamps on and off. ...
Glove box lamp
The Glove Box Lamp comes on when the glove box is opened.
The parking lights or headlights must be ON for the glove box lamp to function. ...
