Hyundai Tucson: Interior lights / Glove box lamp

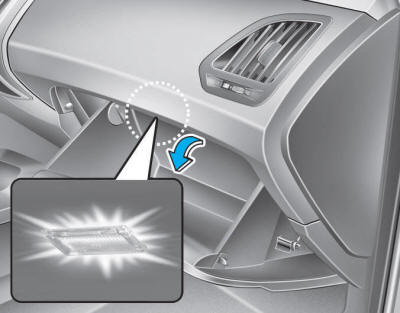

The Glove Box Lamp comes on when the glove box is opened.

The parking lights or headlights must be ON for the glove box lamp to function.

Vanity mirror lamp (if equipped)
Push the switch to turn the light ON or OFF. : The lamp will turn on if this button is pressed. : The lamp will turn off if this button is pressed. ...

Luggage room lamp
The Luggage Room Lamp comes on when the tailgate is opened. ...
