Hyundai Tucson: Brake System / Front Disc Brake Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Brake System / Brake System / Front Disc Brake Components and Components Location

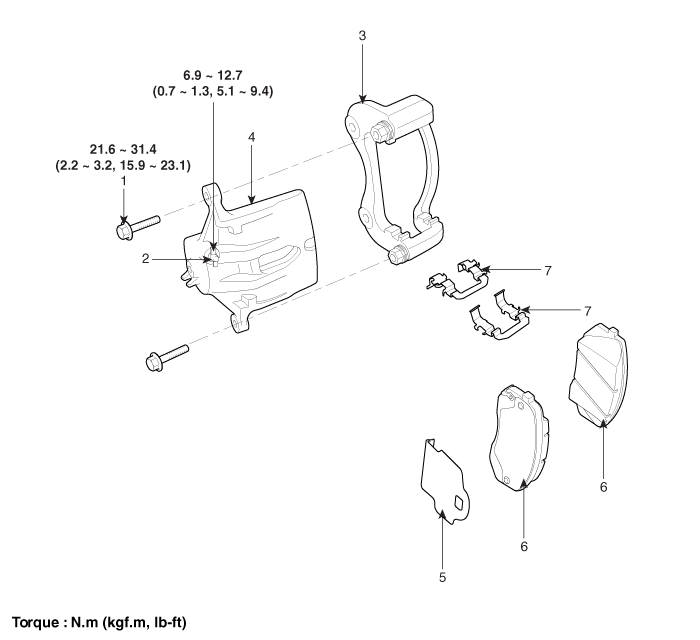

Components

1. Guide rod bolt
2. Bleed screw
3. Caliper bracket
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer
