Hyundai Tucson: Specifications, Consumer information and Reporting safety defects / Vehicle certification label

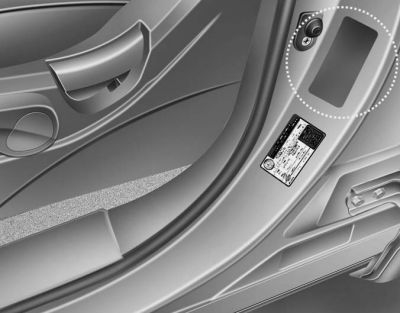

The vehicle certification label attached on the driver’s side center pillar gives the Vehicle Identification Number (VIN).
Vehicle identification number (VIN)
The vehicle identification number (VIN) is the number used in registering your
car and in all legal matters pertaining to its ownership, etc.
The number is punched on the floor under the passenge ...
Tire specification and pressure label
The tires supplied on your new vehicle are chosen to provide the best performance
for normal driving. The tire label located on the driver's side center pillar gives
the tire pressures recomme ...
