Hub nut tightening sequence

Tighten the hub nuts as follows.

Tightening torque (Front) :

88.25 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Tightening torque (Rear) :

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

When using an impact gun, final tightening torque should be checked using a torque wrench.

Run out inspection

1.	Jack up the vehicle.

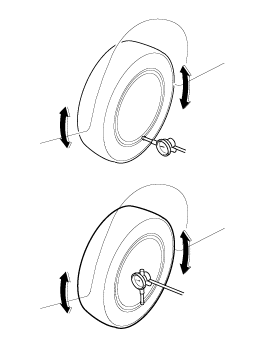

Measure the wheel Run-out by using a dial indicator as illustration below.

Run-out	Aluminum	Steel
Radial mm(in.)	Below 0.3(0.012)	Below 1.0(0.039)
Axial mm(in.)	Below 0.3(0.012)	Below 0.6(0.024)

3.	If measured value exceeds the standard value, replace the wheel.
