Hyundai Tucson: Automatic Transaxle Control System / 35R Clutch Control Solenoid Valve(35R/C_VFS) Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / 35R Clutch Control Solenoid Valve(35R/C_VFS) Schematic Diagrams

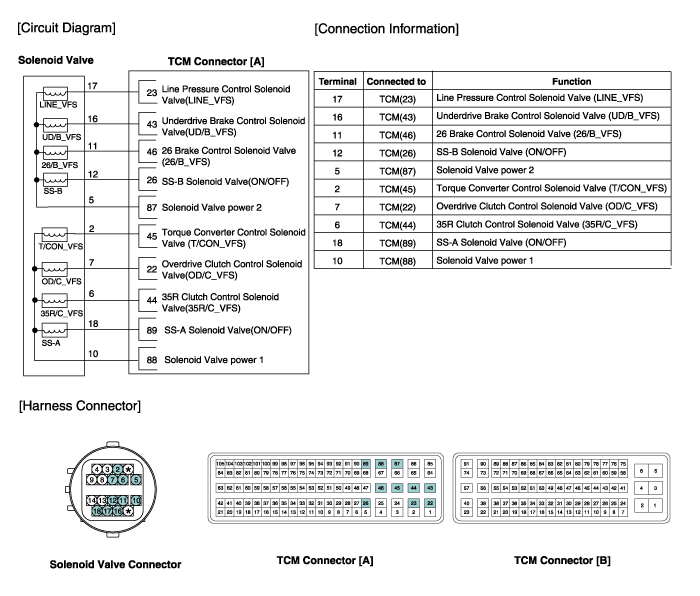

Circuit Diagram

35R Clutch Control Solenoid Valve(35R/C_VFS) Specifications
Specifications Direct control VFS[35R/C] x Control type : Normal high type Control Pressure kpa (kgf/cmx, psi) 500.14 ~ 9.81(5.1 ~ 0.1, 72.54 ~ 1.42)Current value(mA)50 ~ 850 Internal res ...

35R Clutch Control Solenoid Valve(35R/C_VFS) Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Disconnect the solenoid valve connector. 3. Measure resistance between sensor signal terminal and sensor ground terminal. 4. Check that the ...
