Hyundai Tucson: Windshield defrosting and defogging / Automatic climate control system

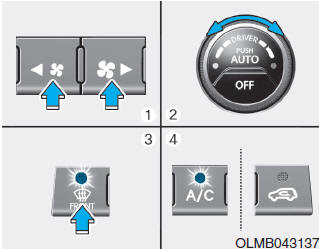

To defog inside windshield
1. Set the fan speed to the desired position.
2. Select desired temperature.
3. Press the defroster button (
).
4. The air conditioning will turn on according to the detected ambient temperature and outside (fresh) air position will be selected automatically.
If the air conditioning and outside (fresh) air position are not selected automatically,
adjust the corresponding button manually. If the
position is selected, lower fan speed
is adjusted to a higher fan speed.

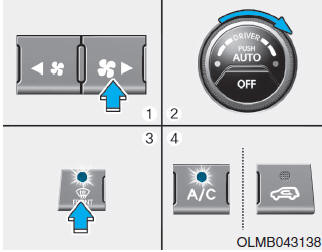

To defrost outside windshield
1. Set the fan speed to the highest position.
2. Set the temperature to the maximum (clockwise) position (HI).
3. Press the defroster button (
).
4. The air conditioning will turn on according to the detected ambient temperature and outside (fresh) air position will be selected automatically.
Manual climate control system
To defog inside windshield
1. Set the fan speed to the desired position.
2. Select the desired temperature.
3. Press the defrost button ( ).
4. The outside (fresh) air will be selected automatic ...
Defogging logic
To reduce the possibility of fogging up the inside of the windshield, the air
intake or air conditioning are controlled automatically according to certain conditions
such as or
position. To can ...
