Hyundai Tucson: Windshield defrosting and defogging / Manual climate control system

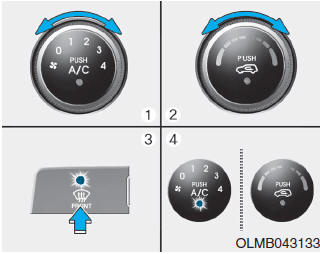

To defog inside windshield
1. Set the fan speed to the desired position.
2. Select the desired temperature.
3. Press the defrost button (
).
4. The outside (fresh) air will be selected automatically. If the
position is selected, air conditioning
will also be selected automatically.
If the air conditioning and/or outside (fresh) air position are not selected automatically, press the corresponding button manually.

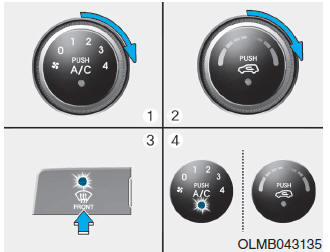

To defrost outside windshield
1. Set the fan speed to the highest position.
2. Set the temperature to the highest temperature setting (clockwise).
3. Press the defrost button (
).
4. The outside (fresh) air and air conditioning will be selected automatically.
Windshield defrosting and defogging
WARNING
Windshield heating
Do not use the or
position during cooling operation in
extremely humid weather. The difference between the temperature of the outside air
and the windshield co ...
Automatic climate control system
To defog inside windshield
1. Set the fan speed to the desired position.
2. Select desired temperature.
3. Press the defroster button ().
4. The air conditioning will turn on according to the de ...
