Hyundai Tucson: Ignition System / Ignition Coil Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Engine Electrical System / Ignition System / Ignition Coil Schematic Diagrams

Circuit Diagram

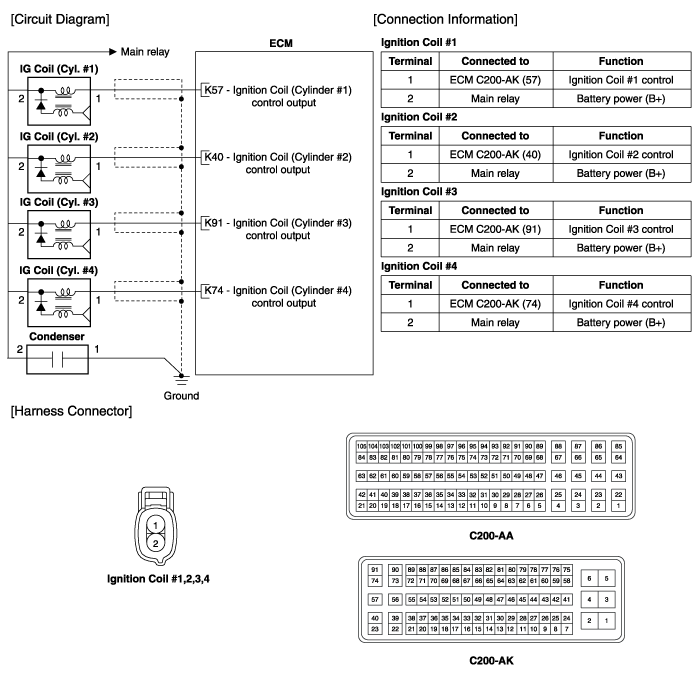

[M/T]

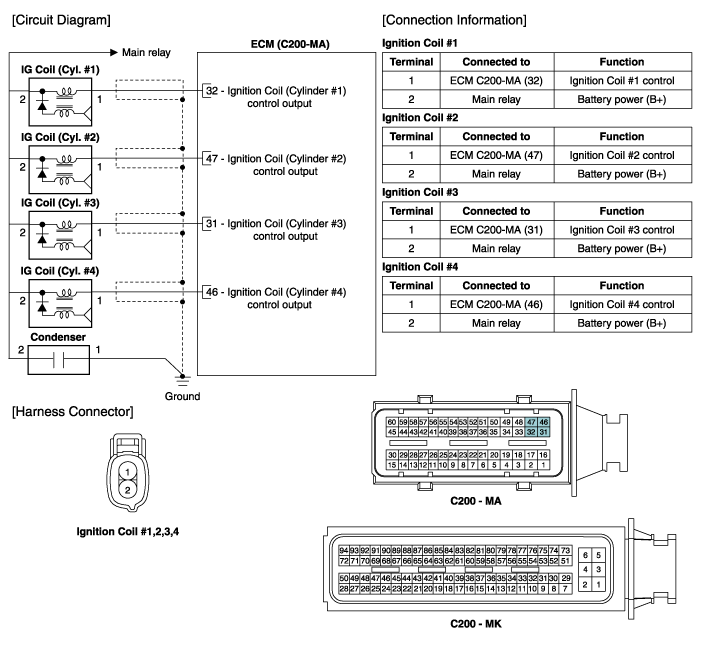

[A/T]

Ignition Coil Specifications

Specification ItemSpecification Primary Coil Resistance (x)0.75 ± 15% [20°C (68°F)]Secondary Coil Resistance (kx)5.9 ± 15% [20°C (68°F)] ...

Ignition Coil Repair procedures

Removal 1. Disconnect the battery nagative terminal. 2. Remove the engine cover. 3. Disconnect the ignition coil connectors (A). • When removing the ignition co ...
