Hyundai Tucson: Manual Transaxle System / Back-up Lamp Switch Repair procedures

Hyundai Tucson (LM) 2010-2015 Service Manual / Manual Transaxle System / Manual Transaxle System / Back-up Lamp Switch Repair procedures

Inspection

1.	Disconnect the back up lamp switch connector (A).

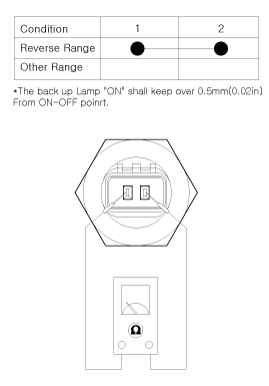

2.	Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.

3.	If necessary, repair or replace the backup lamp switch.

Replacement

1.	Disconnect the back up lamp switch connector (A).

2.	Remove the back up lamp switch (A).

Replace a new one and install the back up lamp switch.

Tightening torque:

39.2 ~ 58.9 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

Back-up Lamp Switch Specifications

Specifications ItemSpecifications Working voltage DC 10~15V Operating force3.0kg MaxVoltage drop-0.4VWorking temperature30°C ~ 100°C [-30°F ~ 212°F] ...
