Hyundai Tucson: Driveshaft Assembly / BJ Boot Components and Components Location

Hyundai Tucson (LM) 2010-2015 Service Manual / Driveshaft and axle / Driveshaft Assembly / BJ Boot Components and Components Location

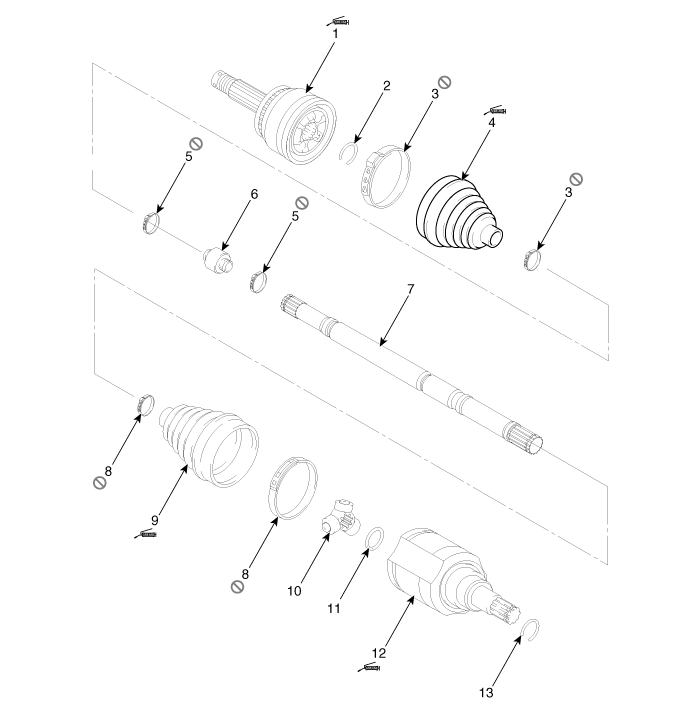

Components

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot

5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band

9. TJ boot
10. Spider assembly
11. Retainer ring
12. TJ housing

13. Housing circlip

Dynamic Damper Repair procedures

Removal 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - “Front Driveshaft”) 2. Remove the TJ joint assembly. (Refer to Driveshaft Assembly - “TJ Joint”) 3. Remo ...

BJ Boot Repair procedures

Removal 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - “Front Driveshaft”) 2. Remove the TJ joint assembly. (Refer to Driveshaft Assembly - “TJ Joint”) 3. Rem ...
