Hyundai Tucson: Wiper blades / Blade replacement

Front windshield wiper blade

■ Type A

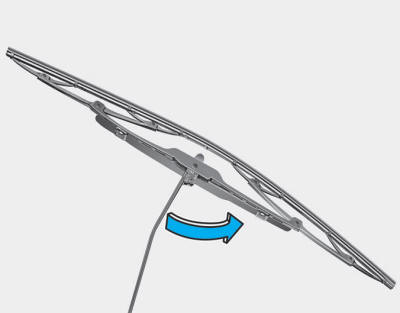

1. Raise the wiper arm and slightly rotate the wiper blade assembly to expose the plastic locking clip.

CAUTION

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

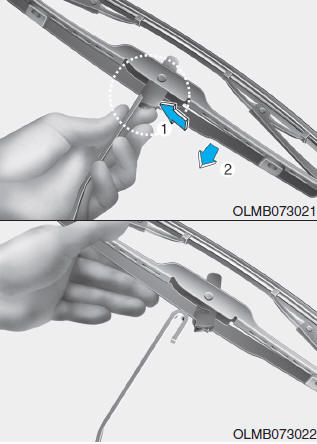

2. Press the clip (1) and slide the blade assembly downward (2).

3. Lift it off the arm.

4. Install the blade assembly in the reverse order of removal.

5. Return the wiper arm on the windshield.

■ Type B

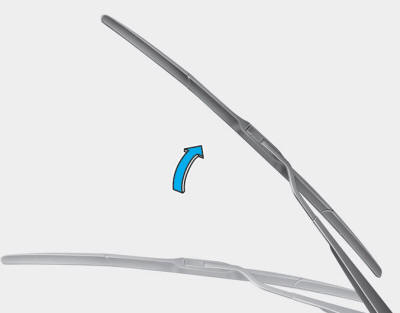

1. Raise the wiper arm.

CAUTION

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

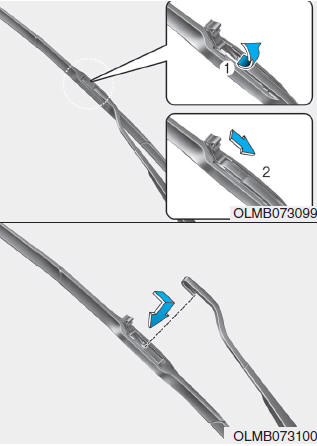

2. Lift up the wiper blade clip (1). Then pull down the blade assembly (2) and remove it.

3. Install the new blade assembly in the reverse order of removal.

4. Return the wiper arm on the windshield.

Rear windshield wiper blade

1. Raise the wiper arm.

2. Slightly rotate the wiper blade (1) assembly and pull it out.

3. Install the new blade assembly by inserting the center part into the slot on the wiper

4. Make sure the blade assembly is installed firmly by trying to pull it slightly.

CAUTION

To prevent damage to the wiper arms or other components, have an authorized HYUNDAI dealer replace the wiper blade.
