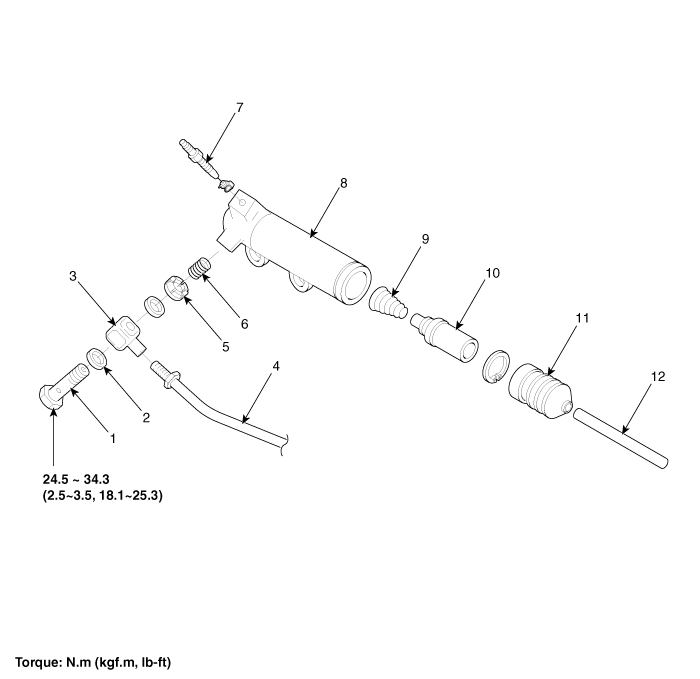

Components

1. Union bolt
2. Gasket
3. Tube joint
4. Clutch tube
5. Valve plate
6. Valve spring
7. Bleeder screw
8. Release cylinder
9. Return spring
10. Piston
11. Boot
12. Push rod

Clutch Master Cylinder Repair procedures
Removal     Do not spill brake fluid on the vehicle; it may damage the paint if brake fluid does contact the paint, wash it off immediately with water. 1. Disconnect t ...

Clutch Release Cylinder Repair procedures
Removal 1. Drain the brake fluid through the bleed plug (A). 2. Remove the clutch release cylinder assembly (C) after removing thd tube (B) and bolts (A-2ea). Installation 1. Installati ...
