Component Location

1. Main relay
2. Cooling fan relay (High)
3. Windshied deicer relay
4. Wiper relay (High)
5. Wiper relay (Low)
6. ATM relay
7. Rear glass defogger relay
8. Burglar horn relay

9. Start relay
10. Cooling fan relay (Low)
11. Horn relay
12. Blower relay
13. A/C relay
14. Fuel pump relay
15. ESS relay

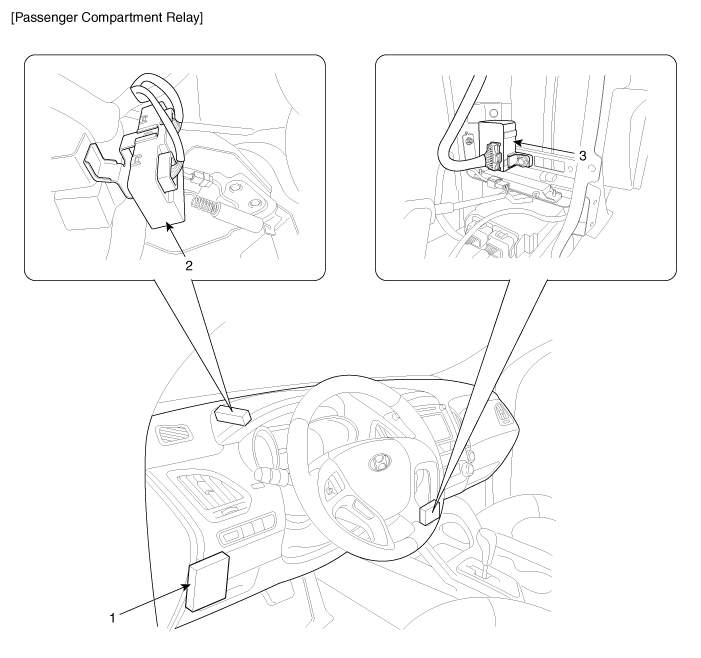

1. SJB (Smart Junction Box)
2. Rear wiper relay, Rear seat heater relay, DBC (Downhill Brake Control) relay, Flasher sound relay
(Built-in ICM relay box)
3. ACC relay, IG1 relay, IG2 relay (Built-in PDM relay box)
