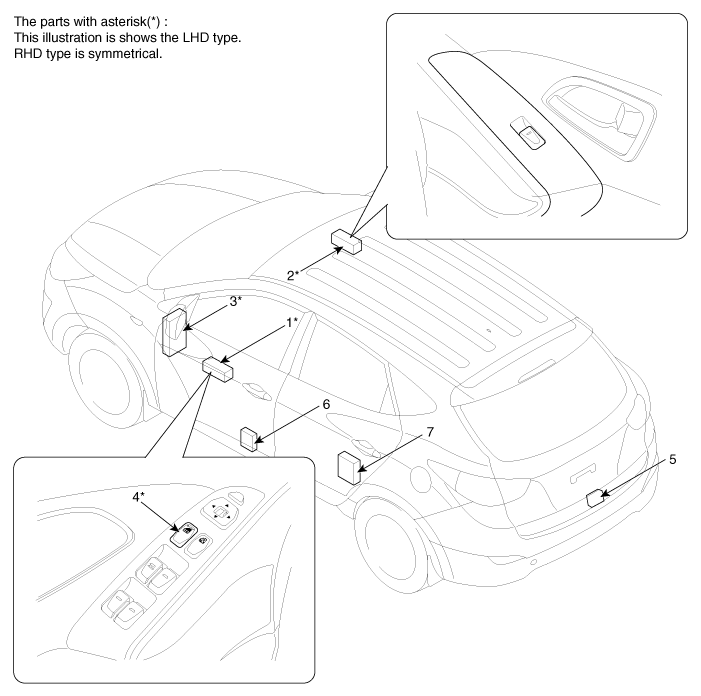

Component Location

1. Driver power window switch
2. Assist power window switch
3. SJB (Smart Junction Box)
4. Door lock switch

5. Liftgate lock actuator & switch
6. Front door lock actuator & switch
7. Rear door lock actuator & switch

Power Door Locks

...

Power Door Lock Actuators Repair procedures

Inspection Front Door Lock Actuator 1. Remove the front door trim. (Refer to the BD group - "Front door") 2. Remove the front door module. (Refer to the BD group - "Front door") 3. Disc ...
