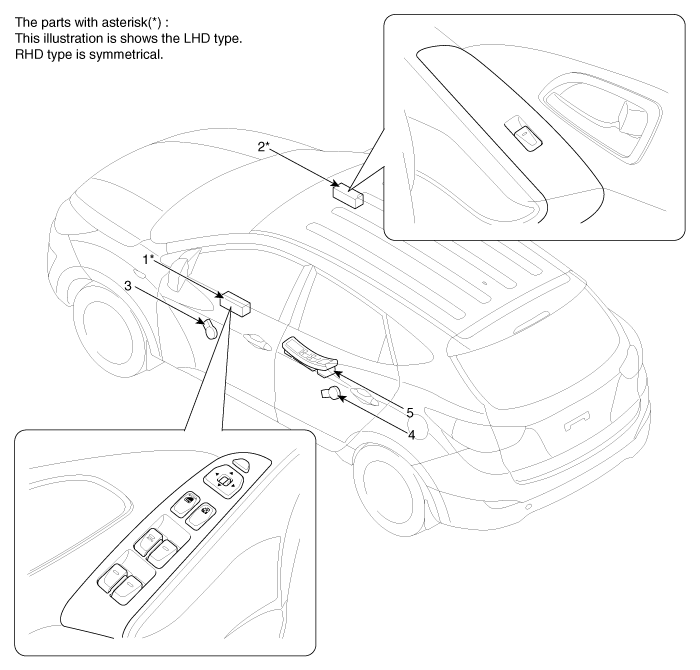

Component Location

1. Driver power window main switch
2. Passenger window switch
3. Front window motor

4. Rear window motor
5. Rear window switch

Description and Operation

Operation Function Of Safety Power Window When all door (Front, Rear) power window auto-up switch is operated, safety function is activated. 1. Safety function condition When detect the force o ...
