Hyundai Tucson: Steering wheel / Heated Steering wheel Schematic Diagrams

Hyundai Tucson (LM) 2010-2015 Service Manual / Steering System / Steering wheel / Heated Steering wheel Schematic Diagrams

Schematic Diagram
1.

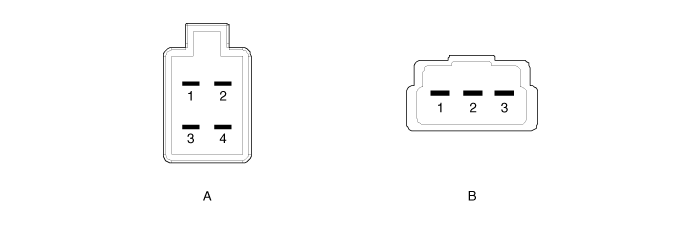

Teminals

2.
Teminal function
Connector
No
Signal
Color
A
1
GND
Black
2
Battary
Red
3
Switch
White
4
LED
Green

Connector
No
Signal
Color
B
1
Heater
Yellow
2
NTC
Black/Red
3
GND
Black

3.

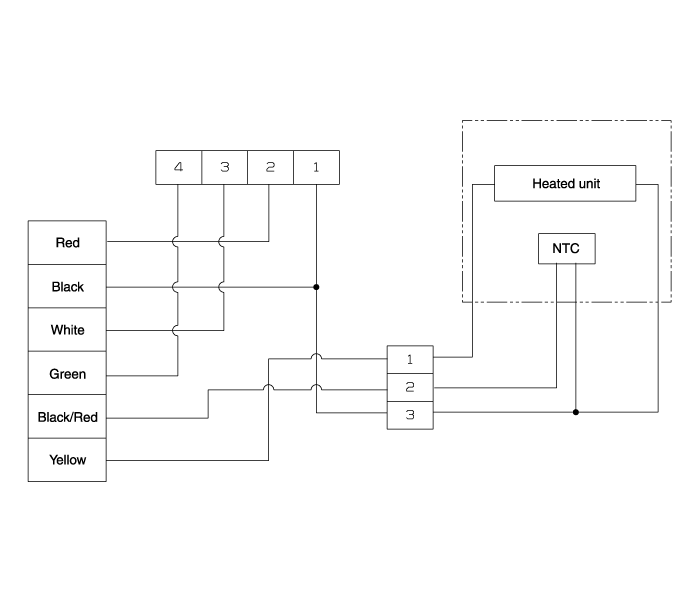

Schematic diagram

Heated Steering wheel Description and Operation
Description Heated pads to grip the steering grip makes the fever. 1. Heated control unit 2. Heated pad Specifications ItemSpecificationVoltage13.5 VHeated pad resistance1.4 ~ 1.8 x  Â ...

Heated Steering wheel Repair procedures
Repair Procedures 1. Measure a resistance of NTC and Heated pad. A. NTC resistance(Black / Yellow, Black) - 9.0 kx ~ kx (25°C) B. Heated pad resistance (Yellow, Black) - 1.4 ~ 1.8 x ± 10% ...
