Description
Heated pads to grip the steering grip makes the fever.
1.
Heated control unit

2.

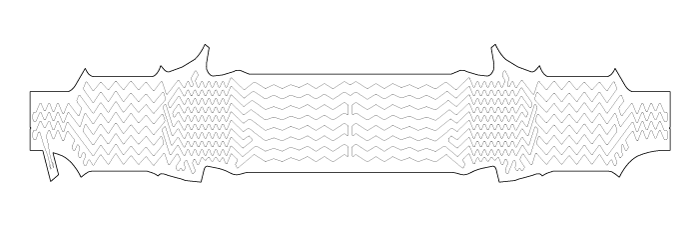

Heated pad

Specifications
Item
Specification
Voltage
13.5 V
Heated pad resistance
1.4 ~ 1.8 x  ± 10%
NTC resistance
10.0 kx  ± 10% (25°C)

Flex Steer Schematic Diagrams
Part Circuit Diagram ...

Heated Steering wheel Schematic Diagrams
Schematic Diagram 1. Teminals 2. Teminal function ConnectorNoSignalColorA1GNDBlack2BattaryRed3SwitchWhite4LEDGreen ConnectorNoSignalColorB1HeaterYellow2NTCBlack/Red3GNDBlack 3. S ...
