Hyundai Tucson: Steering wheel / Flex Steer Schematic Diagrams

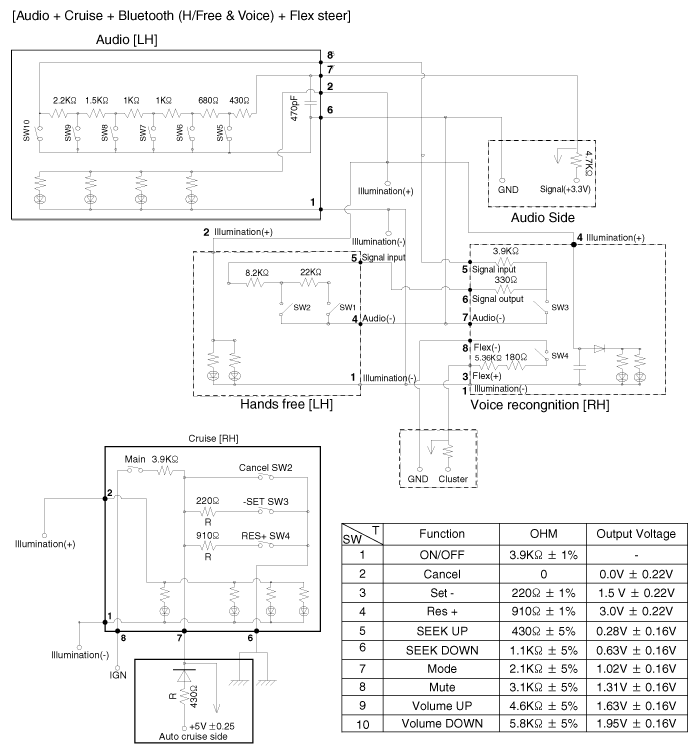

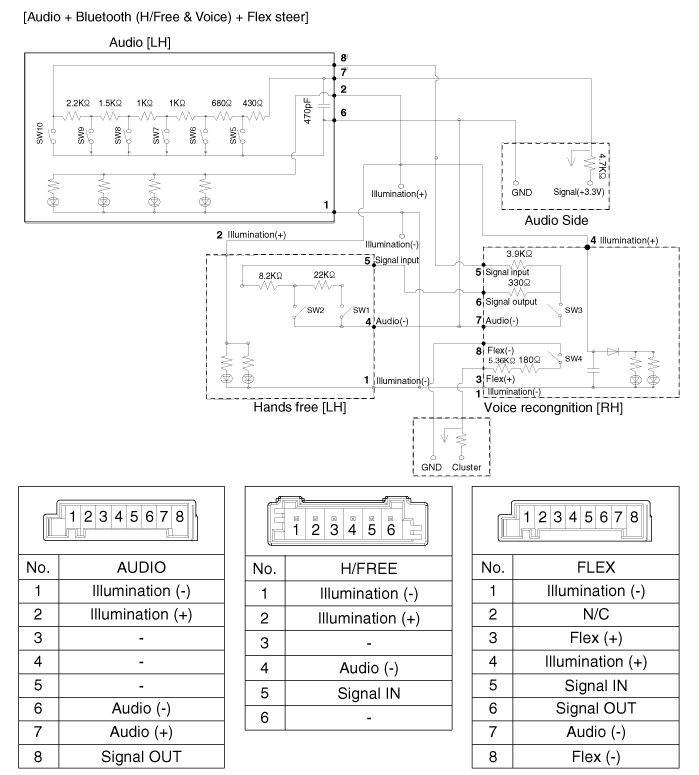

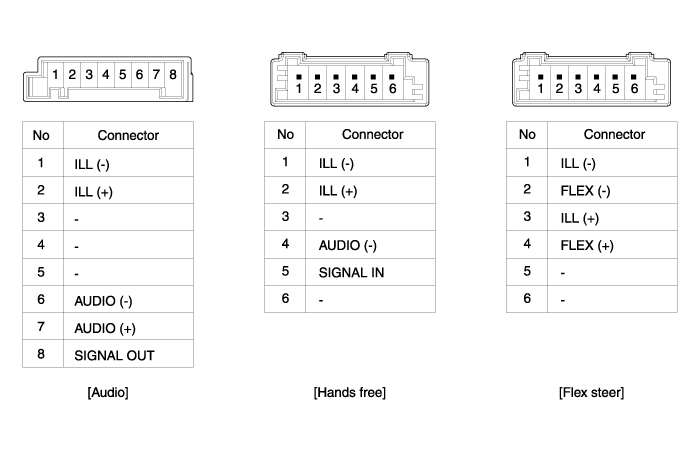

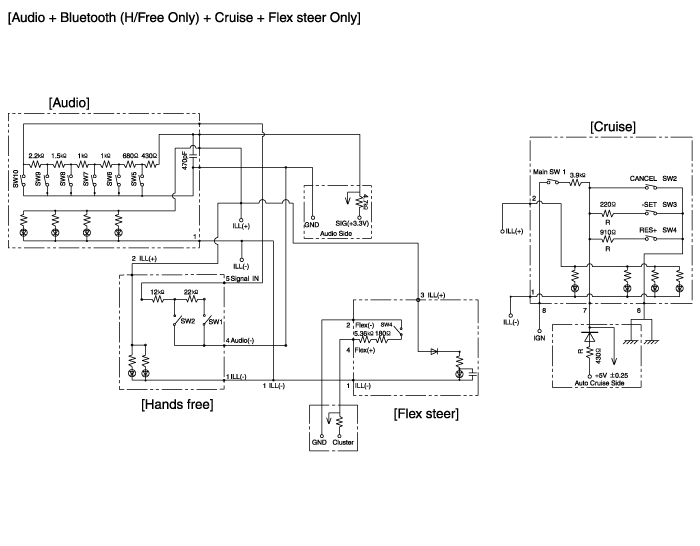

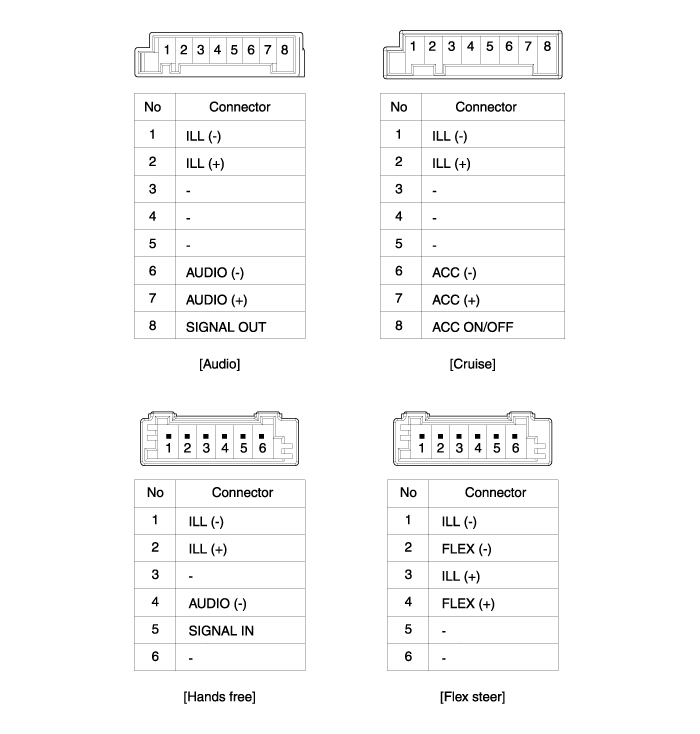

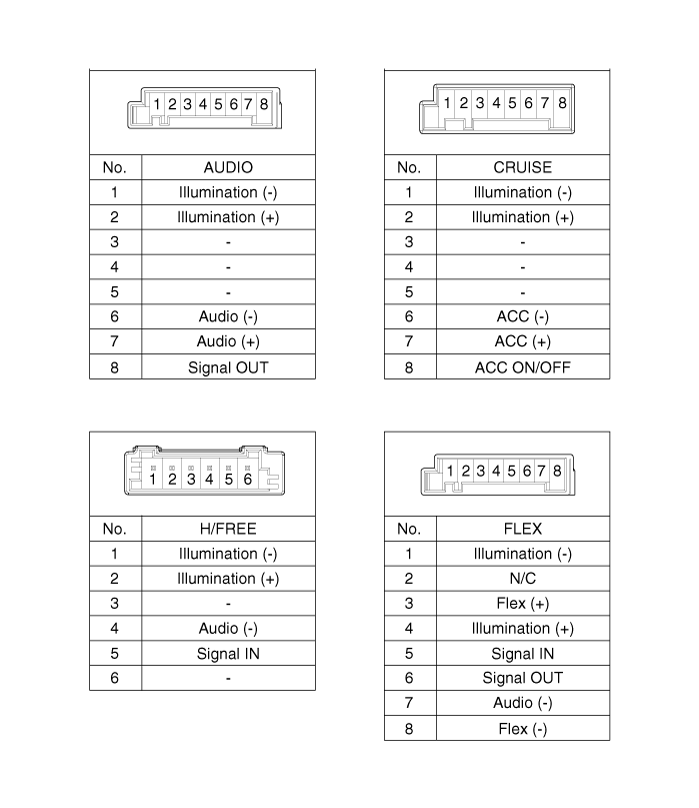

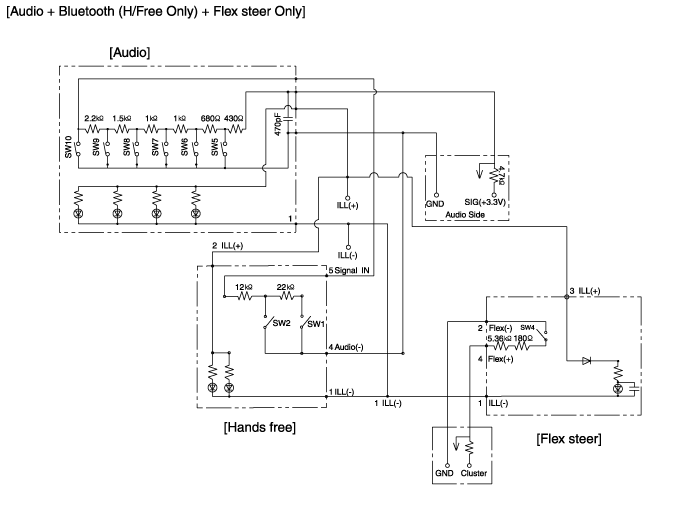

Part Circuit Diagram

Flex Steer Description and Operation
Instruction Flex Steer is system to choose the three modes power steering depending on driver preference or driving conditions.     • Display on the cluster but power steeri ...

Heated Steering wheel Description and Operation
Description Heated pads to grip the steering grip makes the fever. 1. Heated control unit 2. Heated pad Specifications ItemSpecificationVoltage13.5 VHeated pad resistance1.4 ~ 1.8 x  ...
