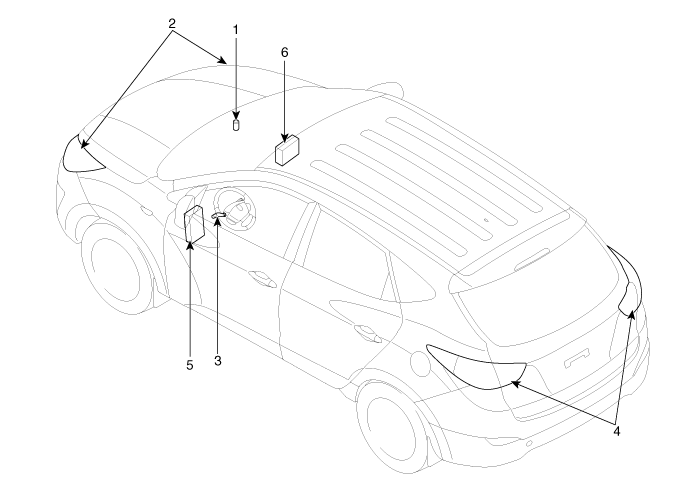

| Component Location |
| 1. Auto light sensor 2. Head lamps 3. Lighting switch (Auto) | 4. Tail lamps 5. SJB (Smart Junction Box) 6. BCM (Body Control Module) |
Specifications
Specifications
ItemsSpecificationsRated voltage5VLoadMax. 1mADetection illuminationsTail lampON : 1.0 ± 0.10 (V)OFF : 2.3 ± 0.20 (V)Head lampON : 1.0 ± 0.10 (V)OFF : 2.3 ± 0.20 (V)
...
Schematic Diagrams
Circuit Diagram
...
